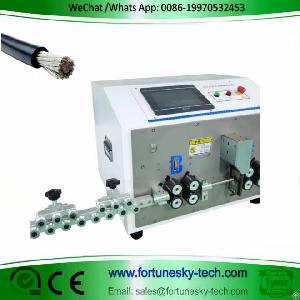

Autostrip Max 70mm˛ Wire Cutting And Stripping Machine
Posted at: Offers to Sell and Export | Posted on: Thursday 19 September 2024 2:25 pm | Poster last visit: Friday 20 September 2024 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Electrical wire and cable and harness
» Electrical wire
» Hook up wires
» Autostrip Max 70mm˛ Wire Cutting And Stripping Machine
Product Description:
The AutoStrip Max: Powerhouse for Thick Wire Processing
The AutoStrip Max 70mm˛ Wire Cutting and Stripping
Machine is a game-changer for handling thick wires. This advanced machine boasts superior processing power, user-friendly features, and exceptional versatility, making it ideal for various industrial applications.
Intelligent Control and Efficient Operation:
Advanced Processing Power: The cutting-edge 64-bit intelligent control system ensures efficient and precise wire processing.
User-Friendly Touchscreen: The intuitive touchscreen interface simplifies operation and allows for easy storage and retrieval of hundreds of data sets for frequently used settings.
Designed for Thick Wires:
Broad Wire Compatibility: Process a wide range of wires, including electronic wires, new energy wires, automotive power distribution box cables, BV, BVR, PVC, and more.
Large Cutting Capacity: Handles thick wires with a core area of 2.5mm˛ to 70mm˛, perfect for industrial applications.
Customizable Processing: Set precise cutting and stripping lengths to meet your specific needs.
Technical Specifications:
Model: JT-507
Dimensions: 600mm x 550mm x 480mm
Weight: 68kg
Display: 7-inch Touchscreen
Power Supply: AC175V-250V, 50/60Hz
Power Consumption: 880W-1280W
Cutting Length: 0.1mm-99999.9mm
Stripping Length: Head: 0.1-300mm, Tail: 0.1-120mm
Cutting Core: 2.5mm˛ - 70mm˛
Cutting Tolerance: 0.002 x L mm
Intermediate Stripping: 13 positions (can be added)
Conduit Diameter: 6mm-19mm
Tool Material: Tungsten Steel/Imported High-Speed Steel
Drive Mode: 8-wheel Drive
Wire Stripping Rate: 800-2000 strips per hour (adjustable)
Wire Pressure Adjustment: Manual Pulley Adjustment
Pulse Equivalent: 1 pulse = 1 step
In-line Error: 0.02mm
Blade Motor Accuracy: 0.1mm per step (Silent Hybrid Stepper Motor)
Additional Features: Automatic outgoing line, automatic incoming line, timing start
The AutoStrip Max is a powerful and versatile solution for thick wire processing. This intelligent machine with its user-friendly features ensures efficient, precise, and professional results, making it a valuable asset for various industrial applications.
