Product Description:

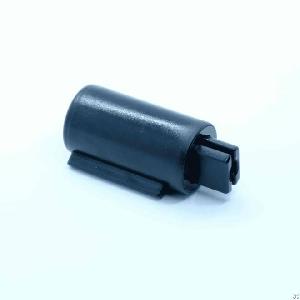

Axial/Barre Damper RD-T138
Characteristics
SOC Free, Screw, two-way, No angle limit
Component Parts
Less
honorary seat: PC
Upper cover: PC
Rotor: POM
O-ring: vmq
Oil: silicone oil
Durability
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30, 000 times
Technical Requirements
1. Damping and Cushioning Direction: T - Bidirectional
2. Torque Testing Standard: 23±2°C, speed of 20 r/min
3. Torque Range: 0.8-5 kgf.cm
4. Static High and Low-Temperature Requirement: -40°C to 90°C
5. Damping Durability Requirement: >30, 000 cycles
