Product Description:

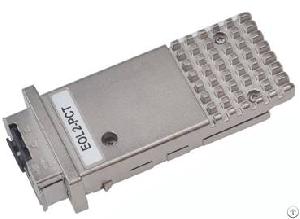

Eoptolink BIDI X2 series transceivers are designed for bi-directional 10G serial optical data communications
such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features:
1-Fiber Bi-Directional X2 Optical Module
Up to 10.3 Gbps Bi-directional Data Links
Compliant with XFP MSA
Compliant to IEEE 802.3ae 10GBASE-BX
Digital Diagnostic Function/DOM
1330 nm DFB LD Transmitter
1270 nm Receiver
Distance Up to 10, 20, 40 km
2-Wire Interface for Integrated Digital Diagnostic Monitoring
RoHS Compliant
Ordering information:
BIDI X2 is based on X2 to SFP+ converter and BIDI SFP+
BIDI XENPAKis based on XENPAK to SFP+ converter and BIDI SFP+
