Product Description:

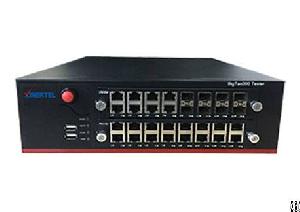

BigTao Series Ethernet Tester
Comprehensive Ethernet Tester
Network Communications Tester
High performance
unified platform delivering comprehensive testing solutions for IP forwarding devices in each stage of R & D, experiment, quality control, performance monitoring and production line test.
With support of high port density 100G, 40G, 10G and 10/100/1000M load modules BigTao can deliver the best cost effective multilayer protocol testing and emulation solutions.
Full IPv4 and IPv6 protocol stack support, per port simulate hundreds of thousands of interfaces and tens of millions of realistic connections.
Key features
Support QSFP28, QSFP+, SFP+, SFP, RJ45 interfaces on 100G, 40, 10G and 10/100/1000Mbps
Integrated PC running Windows XP for separately operating
Multi-user login with easy remote access via a network
Daisy chain of up to 100 chassis with all ports synchronization
Graphical user interface for configuration, data capture and real-time analysis
Support TCL for automating test control
C++ API for customizing test applications
Test suit based on RFC2544, RFC2889 and RFC3918
Chassis specifications
Model BigTao200 BigTao220 BigTao6000
Slots 2 2 6
Power AC 110~240V
CPU Intel dual-core HF CPU Intel Atom E3845 CPU Intel dual-core HF CPU
System Control Reset button, Power switch
Cooling Devices 2 System Fans and 1 Power Fan 4 System Fans 2 System Fans and 1 Power Fan
Status Indicators Power, Hard disk Power, Fan, Temp, Link LCD Screen Power, Hard disk
Humidity 20-85%, RH
Load Module Available P/V6000 Series, P/V8000 Series, P/V9000 Series, P/V9600 Series
Size 310mm×280mm ×89mm 371mm×424mm ×107mm 440mm×436mm ×133mm
Weight 3.5kg 5kg 12kg
Module classification
V Series Test Modules
High performance and full-specification Ethernet test modules running on BigTao series platform.
Supporting full functions of all Ethernet technology test needs.
Classified by the port rate:
V6000 series support 10/100/1000 Mbps per port
V8000 series support 10 Gbps
V9000 series support 40 Gbps
V9600 series support 100 Gbps
P Series Test Modules
P series test modules deliver network testing functionality on BigTao series test platform with high density.P series are specialized developed for comprehensive and automated testing of networking devices on production line.
P6000 series support 10/100/1000 Mbps per port
P8000 series support 10 Gbps
P9000 series support 40 Gbps
P9600 series support 100 Gbps
V Series Test Modules List
Module Name Ports Per Module Connecter Type Single Rate
V6016C 16 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6016F 16 1000M SFP Fiber 1000 Mbps
V6016m 8+8 10/100/1000m rj45 copper and 100/ 1000m sfp fiber 10/100/1000 mbps and 1gbps
V6012C 12 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6012F 12 1000M SFP Fiber 1000 Mbps
V6008C 8 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6008F 8 1000M SFP Fiber 1000 Mbps
V6008m 4+4 10/100/1000m rj45 copper and 100/ 1000m sfp fiber 10/100/1000 mbps and 1gbps
V6004C 4 10/100/1000M RJ45 Copper 10/100/1000 Mbps
V6004F 4 1000M SFP Fiber 1000 Mbps
V8008F 8 10G SFP+ Fiber 10 Gbps
V8004F 4 10G SFP+ Fiber 10 Gbps
V8002F 2 10G SFP+ Fiber 10 Gbps
V8008C 8 10G RJ45 Copper 10 Gbps
V8004C 4 10G RJ45 Copper 10 Gbps
