Product Description:

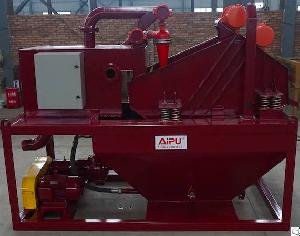

Desanding plant is holding similar working principle of oil and gas drilling solids control. It removes
large solids out of processing fluids or recycling the liquid/water material.
Desanding plant is design for bored pile & TBM on construction with economy option and very compact design for small footprint. AIPU desanding plant can be used for economy option as HDD mud recycling system. The desanding plant is design for flexible working and installation to suit bored pile, TBM or HDD mud recycling system
Model Options of Desanding Plant
Model APMC50 APMC100 APMC200 APMC250 APMC500
Capacity 50m³/h 100m³/h 200m³/h 250m³/h 500m³/h
Separation Size 25μm 40μm 40μm 40μm 70μm
Treated Water Content 30% 30% 50% 30% 30%
Power 18kW 33.44kW 48.88kW 58kW 140kW
Weight 3000kg 3200kg 3750kg 5500kg 14000kg
Dimension 3600×2100×3750mm 3150×2100×2500mm 4200×2200×3800mm 4000×2250×2800mm 9000×6000×6300mm
Note Separation size can be customized by change cyclone size or install decanter centrifuge for 2 microns
Key Points For Desanding Plant
Small Footprint.
Economy Options.
Dry Cuttings Discharge (30% water content).
Low Energy Consumption.
High Efficiency Of Recycling Mud.
High Mud Flow Treating Capacity.
Separation Size Adjustable.
High Intelligent Level.
Tank Over Flow Protection.
