Bored Pile / Tbm Or Piling Project Deanding Plant Unit For Sale
Posted at: Offers to Sell and Export | Posted on: Wednesday 26 July 2017 3:01 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Cleaning Equipment and Supplies
» Water and wastewater treatment supply and disposal
» Water treatment and supply equipment
» Dewatering equipment
» Bored Pile / Tbm Or Piling Project Deanding Plant Unit For Sale

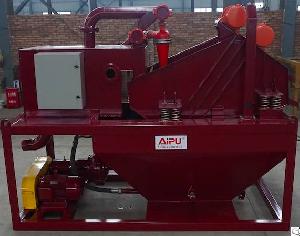

Product Description:
Bored pile and TBM are both civil construction project. We also find some piling projects for overhead
bridge or walkway. For such project, there will be mud or solids to process for water reuse, environmental protection and so on
Desanding Plant Working Procedure
1. A set of submersible slurry pump will pit up mud from mud pit, the length of pump under fluids normally 800mm to 1500mm. Solids particles not allowed larger than 1cm to protect pump impeller, so there is a protect mesh installed at mump inlet.
2. The mud will goes into shale shaker bottom deck by a PU material shaker screen for big solids separation. There are two panel screens, 3 panels screen or 4 panels screen for the bottom deck depending on mud flow requirement. The solids particles will discharge out through shaker screen and clean mud drop into mud tank compartment.
3. There is a pump pick up mud from mud tank compartment and feed into cyclone, the solids out of cone will drop on top of shaker deck for solids drying and clean mud over flow from cyclone will flow into a intermediate box. There is an auto control to allow clean mud goes into mud tank compartment or flow away.
Model Options of Desanding Plant
Model APMC50 APMC100 APMC200 APMC250 APMC500
Capacity 50m³/h 100m³/h 200m³/h 250m³/h 500m³/h
Separation Size 25μm 40μm 40μm 40μm 70μm
Treated Water Content 30% 30% 50% 30% 30%
Power 18kW 33.44kW 48.88kW 58kW 140kW
Weight 3000kg 3200kg 3750kg 5500kg 14000kg
Dimension 3600×2100×3750mm 3150×2100×2500mm 4200×2200×3800mm 4000×2250×2800mm 9000×6000×6300mm
Note Separation size can be customized by change cyclone size or install decanter centrifuge for 2 microns
The Aipu desanding plant features and benefits including high quality equipment, professional design and high efficiency. From the motor, to the cyclone, whole system design and tank configuration detail. Please contact Aipu solids control for any question or interest
Company Contact:
Contact Name: Jessie
Company Name: Aipu Solids Control
Email:
Tel: +86-18691483929
Fax: +86-2963611978
Street Address: 4th Jingyuan Road,
Jinghe Industry Zone
Xi'an, Shaanxi 710200
China
Website: https://www.aipusolidcontrol.com
Member name: aipusolidcontrol
Country:
China
Member Since: 11 July 2017
Total Leads: 172 aipusolidcontrol Import Export Business Leads
Business focus: Solids Control Equipment, Shale Shaker, Mud Cleaner, Centrifuge
Chat:
Verify: Safe Import Export Tips
