Borehole Drilling Machine

Posted at: Offers to Sell and Export | Posted on: Monday 11 November 2013 8:40 am | Poster last visit: Saturday 18 August 2018 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Raw materials processing machinery » Machinery for working wood and stone and ceramic and the like » Drilling machines » Borehole Drilling Machine

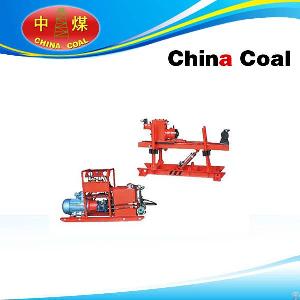

Product Photo:

borehole drilling machine

Similar Products Catalog:
Products Photos Catalog Borehole Drilling Photos Catalog

Product Description:

Borehole Drilling Machine

Product Introduction


The drilling rig is mainly used in soil and rock anchoring,

consolidation of road base, dam base, retaining wall and hole drilling. It features long feed stroke, large capacity, easy to operate and move etc. It is better idea anchoring drill rig for anchoring bar, consolidating and strengthen engineering and all other engineering geological drilling. The drilling rig is mainly used in soil and rock anchoring, consolidation of road base, dam base and retaining wall, and blasting hole drilling and jet-grouting.

Main Characteristics

1. The drilling rig is with mechanical transmission and hydraulic feed, drill hole dia. is mainly110-130mm(can reach 180mm), drilling capacity 60m, can drill at any angle between horizontal and vertical. 2 Long feeding stroke reaching 2300mm with 2m drill rod. 3. Using with rotation drilling and percussion-rotation drilling, drill efficiently. 4. Support cylinder, it is easy to adjust the angle of the mast. 5. With crawler, it is easy and fast to find out the drill hole position.

Technical Parameters

Diesel engine: 15kW2200 r/min



Drilling hole dia: Φ 130mm mainly (can reach 180mm)



Drilling capacity: 60m



Drill rod: Φ 50mm or Φ 73mm   Length:2m



Rated pull force: 22kN



Rated push force: 14.6kN



Liftng speed: 0.259m/s



Max. torque: 2984N.m



Stroke: 2300mm



Roate speed: 48; 88; 162; 281 reversal 39r/min



Oil Pump

Model:  CBK1020/8 Twin-gearoil pump



Displacement: 20+8.1mL/r



Rate speed: 1 500r/min



Working pressure: 8Mpa



Max.pressure: 16Mpa



Crawler



Model:  DP101CT



Max. tow force:  27.5kN



Crawling speed: 1.17kN



Crawling angle:  less than30°



Drilling vertical hole:  L3130*W1920*H4090mm



Weight of drill body:  900kg



Company Contact:

ChinaCoalGroup photo
Contact Name: Hookhu
Company Name: Shandong China Coal Group
Email: Email
Tel: 8605372351381
Fax: 8605372486099
Street Address: Huojuroad
Shandong, Jining 277810
China
Website: https://www.chinacoalintl.com
Member name: ChinaCoalGroup
Country: China-CN China
Member Since: 11 November 2013
Total Leads: 5 ChinaCoalGroup Import Export Business Leads
Business focus: Mining Machine, Lifting Machine, Valve, Motor
