Product Description:

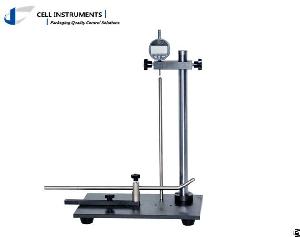

Bottle Wall Thickness Tester is suitable for the thickness measurement of glass bottle bottom and wall
in pharmaceutical, food and other industries.
It can also be used to measure the thickness of infusion bottle, beer bottles, oral liquid bottles, ampoule, penicillin bottles etc.
Technical Features
Electronic digital display measuring result
Grating sensing technology
Both bottom and wall thickness measurement
Bottle Wall Thickness Tester Technical Data
Test Range: 0-12.5 mm
Dividing Value: 0.001 mm
Sample Diameter: 5-80 mm (other size can be customized)
Sample Height: 0-300mm (other size can be customized)
Dimension: 320mm(L)*200mm(W)*430mm(H)
Weight: 8Kg
Standards:
Gb12415-90, gb2641-90, gb2639-90
Configuration
Mainframe, digital measuring head
