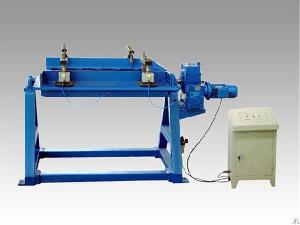

Box-beam Baffle Assembly Machine
Posted at: Offers to Sell and Export | Posted on: Thursday 22 May 2014 7:53 am | Poster last visit: Wednesday 4 June 2014 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Welding and soldering and brazing machinery and accessories and supplies
» Welding and soldering and brazing accessories
» Welding positioner and manipulator
» Box-beam Baffle Assembly Machine
Product Description:
1. Introduction:
This is the special machine for the baffle assembling and welding in the middle of
box-beam. The baffle assembly adopts gas cylinder to clamp and positioning, and then tack welding or full welding. It can ensure the accurate positioning of box-beam baffle assembly and prevent the box-beam deformation during welding.
2. Working principle
This is the dedicated equipment for assembly and welding of intermediate baffle. The baffle assembly adopts gas cylinder to clamp and positioning, and then tack welding or full welding. After complete one side, the motorized overturning table turns 180 o to weld another side. And then turn the overturning rack to horizontal position to release air cylinder for unloading the material. The pneumatic control elements are imported products, and overturning motor is electromagnetic brake motor via worm gear transmission to ensure the worktable can stop at any position accurately and self-locked.
3. Main features
The standard models of our baffle assembly machines have the following features:
Overturning transmission process is motor driving worm gear reducer to overturn the worktable iną180°;
Overturning motor is magnetic brake motor which can stop at any position and self-locking during overturning processes.
Overturning control adopts foot switch.
There is positioning device on worktable.
All motion parts have lubrication system;
Main electric elements are ABB/Siemens brands;
Standard color:
Company Contact:
Contact Name: Jack (wenmao Shih)
Company Name: Wuxi Guoheng Machinery Co., Ltd
Email:
Tel: 86-18661008747
Fax: 86-510-83050787
Street Address: 100# Tianshun Roda,
Huishan Dist., Wuxi, Jiangsu 214156
China
Website: https://www.pipeweldingrotators.com
Member name: Guohengmachinery
Country:
China
Member Since: 22 May 2014
Total Leads: 37 Guohengmachinery Import Export Business Leads
Business focus: Welding Equipmens, Rotators, Manipulators, Positioners, H Beam Line, Cnc Plasma Cutting Machine, Box Beam Line
