Brass Terminal Bar With Fixing Part Gk001-0609
Posted at: Offers to Sell and Export | Posted on: Monday 26 April 2021 6:28 am | Poster last visit: Monday 26 April 2021 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Electrical lugs plugs and connectors
» Terminal blocks
» Brass Terminal Bar With Fixing Part Gk001-0609
Product Description:

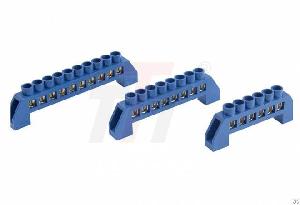

Brass Terminal Bar with Fixing Part GK001-0609
Terminal series use high quality brass raw material,
has the characteristics of high-current- carrying capacity, convenient-wiring and durable quality.With acid-pickling treatment, products are not easily oxidized.Due to Precisely manufacturing, it avoid the difficultyof reinstallation after many times .
Pole No. Installation Dimension(mm) Outline Dimension(mm) Sectioncross of Brass(mm2)
4 48.2 59.2*11.2 6*9
6 65.4 76.4*11.2 6*9
8 82.6 93.6*11.2 6*9
10 99.8 110.8*11.2 6*9
12 117 128*11.2 6*9
Requirements to a Brass Terminal body
1 The terminal body is manufactured from copper-zinc alloy
2 The terminal body is to be manufactured in parallelepipedal shape with mutually perpendicular side planes. Deviation of perpendicularity is no less than 0, 1mm
3 The other sharp edges are to be blunted
4 The surface of holes for wire mounting is to be smooth without burrs, edge fins and etc.
5 The form of thread into threaded openings is to be full without edge fins. Every opening is to have no less than three full turns of a thread
We are Power Distribution Block Supplier.
Requirements to a terminal
1 The terminal is to be equipped with screws in the quantity equal to the quantity of contact groups for the wire fixing
2 The screws are not to create troubles to next screws at the operation
3 Dimensions and completed set of terminals are to correspond to design documents.
4 Operation temperature range could be from minus 40 to plus 50 ° С.
Outgoing inspection of High-Quality Brass Terminal
Visual Check:
Bring out the absence of outer damages, deep scratches, cracks, chips, corrosion on the terminals and screws.
All screws are to be entirely tightened.
Temperature Rise Test :
5% of the batch of each standard size, but not less than 10 pcs.
Certifications:
CE, can be of ROHS at your decision
Company Contact:
Contact Name: Nancy Huang
Company Name: Yueqing Gaoke Environmental Electric Co., Ltd.
Email:
Tel: 057762702345
Fax: 057762777351
Street Address: 801-811 Lehu Road
Shahu Industrial Zone Liushi
Wenzhou, Zhejiang 325604
China
Website: https://www.cn-gaokeelectric.com/
Member name: gaokeelectric
Country:
China
Member Since: 26 April 2021
Total Leads: 2 gaokeelectric Import Export Business Leads
Business focus: Brass Terminal Block, Combinated Busbar, Din Rail, Terminal Block
Chat:
Verify: Safe Import Export Tips
Terminal series use high quality brass raw material,
has the characteristics of high-current- carrying capacity, convenient-wiring and durable quality.With acid-pickling treatment, products are not easily oxidized.Due to Precisely manufacturing, it avoid the difficultyof reinstallation after many times .
Pole No. Installation Dimension(mm) Outline Dimension(mm) Sectioncross of Brass(mm2)
4 48.2 59.2*11.2 6*9
6 65.4 76.4*11.2 6*9
8 82.6 93.6*11.2 6*9
10 99.8 110.8*11.2 6*9
12 117 128*11.2 6*9
Requirements to a Brass Terminal body
1 The terminal body is manufactured from copper-zinc alloy
2 The terminal body is to be manufactured in parallelepipedal shape with mutually perpendicular side planes. Deviation of perpendicularity is no less than 0, 1mm
3 The other sharp edges are to be blunted
4 The surface of holes for wire mounting is to be smooth without burrs, edge fins and etc.
5 The form of thread into threaded openings is to be full without edge fins. Every opening is to have no less than three full turns of a thread
We are Power Distribution Block Supplier.
Requirements to a terminal
1 The terminal is to be equipped with screws in the quantity equal to the quantity of contact groups for the wire fixing
2 The screws are not to create troubles to next screws at the operation
3 Dimensions and completed set of terminals are to correspond to design documents.
4 Operation temperature range could be from minus 40 to plus 50 ° С.
Outgoing inspection of High-Quality Brass Terminal
Visual Check:
Bring out the absence of outer damages, deep scratches, cracks, chips, corrosion on the terminals and screws.
All screws are to be entirely tightened.
Temperature Rise Test :
5% of the batch of each standard size, but not less than 10 pcs.
Certifications:
CE, can be of ROHS at your decision
