Bs5163 Resilient Seat Gate Valve

Posted at: Offers to Sell and Export | Posted on: Thursday 6 June 2024 2:13 am | Poster last visit: Thursday 13 June 2024 |

Product Category: Main » Distribution and Conditioning Systems and Equipment and Components » Fluid and gas distribution » Valves » Valve seat » Bs5163 Resilient Seat Gate Valve


Product Photo:

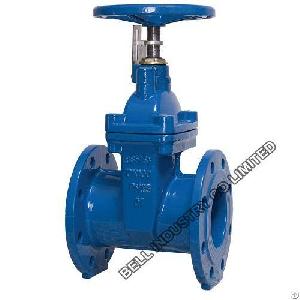

bs5163 resilient seat gate valve

Similar Products Catalog:
Products Photos Catalog Bs5163 Resilient Seat Photos Catalog

Product Description:

Resilient-seated gate valves according to European standard BS5163 with straight, smooth and non-constricted



passage. Internally enamel, externally EKB. For water, air and non-aggressive gases

-Design Std: EN 1074 part 1 & 2, BS5163 Type B

-Size:DN40--DN1000

-Pressure Rating: PN16, PN10

-Seat: NBR, EPDM

-Face to Face:EN 558 Table 2 Basic Series 3

-Pressure Testing: EN 1074-1 and 2 / EN 12266

-Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563

-Flange Ends:EN1092-2 (ISO 7005-2), PN 16

-Working temperature:-20 to +120℃

Product Features:

Body material is from cast iron (GGG) and wedge is fully covered by NBR or EPDM. Spindle material is stainless steel. valve is designed such a way that provide safe sealing. By turning the stem clockwise, with the elastic design of the sealing wedge gives absolute tightness with minimum torque.

Corrosion protection:

All casting parts are coated with epoxy powder RAL 5015 or 5005 by electrostatic method.
