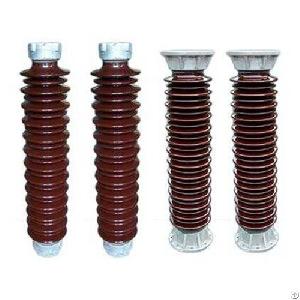

Bushing Insulator
Posted at: Offers to Sell and Export | Posted on: Friday 16 August 2019 9:01 am | Poster last visit: Thursday 26 September 2019 | Targeted Countries: Japan | Austria | American Samoa
Product Category: Main
» Industrial Production and Manufacturing Services
» Manufacturing support services
» Assembly services
» Electronics manufacturing service
» Bushing Insulator
Product Description:
We offer different kinds of Hollow & Bushing Insulator for Substation, such as Circuit Breaker (CB),
GIS, Post Insulator, Disconnector, Potential Transformer (PT), Surge Arrester, etc.
Contact us get more details about Hollow & Bushing Insulator, such as TDS, Application Method, OEM etc.
We can supply different type of Hollow & Bushing Insulator, also customer required.
Background technique of ceramic transformer insulator
Arcing, corona, etc. occur in the device or the end of the hollow core composite sleeve, and the high temperature generated directly acts on the inner wall of the epoxy layer. Or the plasma generated by the arc and the corrosive gas generated by the decomposition of SF6 in the circuit breaker may impinge on the inner wall of the exposed epoxy layer. Polyethylene oxide itself has high temperature ablation resistance, arc resistance and corona resistance, and may cause severe surface ablation and leakage. Therefore, it is necessary to improve the arc resistance of the Hollow & Bushing Insulator.
In the existing science and technology, the fluoroplastic tube is sheathed in the polyethylene oxide/glass fiber composite pipe, thereby utilizing the arc resistance of the fluoroplastic to prevent arc, corona and the like from damaging the inner wall of the hollow composite pipe. However, in this way, its flexibility is poor, the pipe wall is thick, the production is difficult, and the cost is high.
Introduction of Hollow Core Insulators hollow insulator:
Hollow & Bushing Insulator plays an important role in insulation, support, etc. in outdoor power stations, substation and electrical equipment, or as a component of electrical equipment for power equipment. It is usually made of glass fiber hollow-wound tube, upper and lower flanges and silicone rubber shed, which provides support and insulation for wires and electrical equipment, or acts as external insulation for electric equipment, bearing external forces such as bending and stretching.
Structure of hollow porcelain insulator:
The Hollow & Bushing Insulator consists of an insulated mandrel inner cylinder, a tip flange, and a silicone rubber umbrella sleeve. The silicone rubber umbrella sleeve is formed by connecting two or more silicone rubber umbrella sleeve segments, and the connection structure between the adjacent two silicone rubber umbrella sleeve segments is a stepped lap joint structure, which increases the lap joint area. When the silicone rubber umbrella sleeve is subjected to the axial tensile force, the joint strength between the two mold umbrella sleeves is strengthened, the electrical performance of the hollow composite insulator is ensured, and the service life is prolonged.
Company Contact:
Contact Name: Iven Zang
Company Name: Fujian Ruisen New Materials Co., Ltd.
Email:
Tel: 0597-3271526
Fax: 0597-3271526
Street Address: Hean District,
Industrial Area, Zhangping, Fujian,
China Zhangping, Fujian 364400 China
Website: https://www.cnruisen.com
Member name: ruisenmaterial
Country:
China
Member Since: 31 May 2019
Total Leads: 29 ruisenmaterial Import Export Business Leads
Business focus: Coating, Insulator, High Voltage Insulator Coating, Enhanced Anti Pollution Flashover Coating, Silicone Rubber Insulation Self-fusing Tape
