Product Description:
Description:

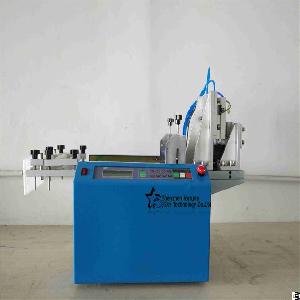

This automatic pv ribbon door glyph cutting bending machine is designed and developed
for the molding of PV Bus used in the photovoltaic double glass modulets and double junction box . With advanced processing technology, it adopts these imported automation accessories in the aspect of control to make the operation achieve the best performance.
When the product effectively solves the artificial production of homework in the production of module ;
Single and dual bending can be programed to switch freely to replace the relevant specification more conveniently.
Model: C350 – SZM
Power Supply : AC220V150W
Air pressure:> 0.6 Mpa
Air line connection: ˘10 mm
Dimension: (L) 750*(W) 280*(H) 460mm
Weight: 28.5 KG
Range of specifications: width: 2.0- 8.0 mm; thickness: 0.10- 0.60 ㎜
Forming specifications: short side: 20-1000 – mm long side: 300 mm or less (Forming length size can be customized)
Forming Angle: 90°±1°
Production speed: 100 PCS/Min
Processing strips: 1-6 PCS
Processing material: tin- plated copper strip or other strip material
