Product Description:

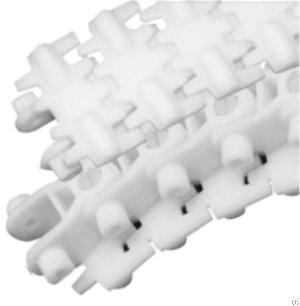

C7101 flexi chain
● Pitch 25.4 mm
● Rod Diameter 4 mm, material SUS
● Backbending
radius minimum 100 mm
● Minimum Turning Radius 150 mm
● Capable to run on corner discs for conveyor layouts requiring tight turns
Sprocket data
Part number No.of Teeth Bore Dia.mm Pitch Dia.
mm Outside
Dia. mm Processing
Technic Material
Round
Bore Square Bore
SP-7100-8 8 20-30 65.81 72.2 Machined PA/PP
Sp-7100-9 9 20-30 74.26 80.5
Sp-7100-10 10 20-30 82.2 88.5
Sp-7100-11 11 20-40 90.18 97
Sp-7100-13 13 20-40 106.14 112.5
Sp-7100-15 15 20-40 122.17 128.5
