Product Description:

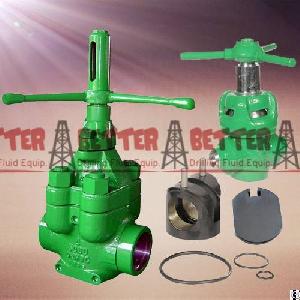

BETTER Drilling Fluid Equip. could offer you some popular mud gate valves, these valves are designed
in accordance with API 6A standard and can full interchangeable with famous brands (DEMCO, OTECO, CAMERON, ANSON, and MUDKING), equivalent to DEMCO DM type, OTECO Model 72, CAMERAN FC type, which is applied in Mud pump line, standpipe manifolds, oil and gas pipelines, abrasive drilling mud system, corrosive water flood lines, cementing services, wellheads, and well treating chemicals
Specifications:
Designed specifically for abrasive and erosive condition
Gates available: Nickel-plated carbon steel, Monel, Aluminum Bronze or Stainless Steel
Stainless or Carbon Steel Inserts with Nitrile or HNBR Elastomer
Connection: Flange/Thread/Butt weld/Hammer Union
Pressure ratings 2000psi, 3000psi, 5000 psi in 2", 3", 4", 5" x 4" and 6" x 4" Valve Sizes
Working Temperature: -46°C ~ +121°C
Sour Service Models to NACE MR-01-75
Specification Level: PSL1 ~ PSL4
Perfomance Requirement: PR1 ~ PR2
Factory Pressure Tested in Accordance with API.6A
We also produce DEMCO DM gate valve parts, major repair kit and minor repair kit, such as STEM SCREW, STEM SCREW SEAL, STEM, SECONDARY SEAL, STEM SEAL ASSEMBLY, BONNET SEAL, GATE, SEAT ASSEMBLY and so on for 2”, 3” 4” 2000psi, 3000psi, 5000psi.
OEM part no. For reference as below:
Major Repair Kit J025091-10221, J025091-10321, J025091-10421
Minor Repair Kit J025091-00221, J025091-00321, J025091-00421
Stem screw m1913 m1914-003 m7416
STEM SCREW Seal M5526-224 M5530-226
Stem 303 ss 316 ss m1931-002 m1931-008 m1932-002 m1932-008 m7439-002 m7439-008
SECONDARY SEAL Buna N M5530-210 M5530-212 M5526-214
Stem seal assembly m1949-001 m1949-006 m1950-001 m1950-006 m1951-001 m1951-006
Bonnet, uncoated coated m1237-0210 m1980-0310 m7419-030 m7419-031
BONNET SEAL Buna N Viton M5530-342 M5531-342 M5530-433 M5531-433 M5520-439 M5531-439
GATE Steel, Nickel Plated 316 SS M1887-002 M1887-008 M1886-002 M1886-008 M1926-002 M1926-008
SEAT Ductile Iron Steel 315SS M1876-011 M1876-012 M1876-021 M1876-022 M1876-081 M1876-082
Demco dm type 2” full port 2000 3000 5000 wp mud gate valve
2” Flanged J001023 J001024 M2024 J001025M2025
2” Full Port Threaded J001026 J001027 M2027 J001028 M2028
2” Weld J001029 J001030 M2030 J001031 M2031
2”Grooved J011920 - -
Stem Screw C-1213 J001913
Stem Screw Seal Buna-N J005526-224
Stem 303 SS 316 SS J001931-002 J001931-008
Secondary Seal Buna-N J005526-210
Stem Seal Assembly Buna-N Viton J001949-001 J001949-006
Bonnet Seal Buna-N Viton J005526-342 J005531-342
Gate Steel, Nickel Plated 316 SS J001887-002 J001887-008
Body A105 A216 A487 - - -
Seat Assembly Inserts: Ductile Iron or Steel or 316 SS Elastomers: Buna-N Viton J001876-011 J001876-012 J001876-081 J001876-082 J001876-021 J001876-022
Demco dm type 3” full port 2000 3000 5000 wp mud gate valve
3” Flanged J001036 J001037 M2037 J001038 M2038
3” Threaded J001045 J001046 M2046 J001047 M2047
3” Weld J001054 J001055 M2055 J001056 M2056
3” Grooved J011922 - -
Stem Screw C-1213 J001914-003
Stem Screw Seal Buna-N J005526-226
Stem 303 SS 316 SS J001932-002 J001932-008
Secondary Seal Buna-N J005526-212
Stem Seal Assembly Buna-N Viton J001950-001 J001950-006
Bonnet Seal Buna-N Viton J005526-431 J005531-431 J005526-433 J005531-433
Gate Steel, Nickel Plated 316 SS J001886-002, J001886-008
Seat Assembly Inserts: Ductile Iron or Steel or 316 SS Elastomers: Buna-N Viton J001878-011 J001878-081 J001878-082 J001878-012 J001878-021 J001878-022
Demco dm type 4” full port 2000 3000 5000 wp mud gate valve
4” Flanged J001039 J001040 M2040 J007420
4” Threaded J001048 J001049 M2049 M8420
4”Weld J001057 J001058 M2058 M27263
4” Grooved J011923 -
Stem Screw C-1213 J001915
Stem Screw Seal Buna-N J005526-227
Stem 303 SS 316 SS J001933-002 J001933-008 J007439-002 J007439-008
Secondary Seal Buna-N J005526-214
Stem Seal Assembly Buna-N Viton J001951-001 J001951-006
Bonnet Seal Buna-N Viton J005526-438 J005531-438 J005526-439 J005531-439 J005520-439 J005531-439
Gate AISI 1045 Nickel Plated Cast SS ASTM A351 Grade CF8M J001926-002 J001926-008
Seat Assembly Inserts:Ductile Iron ASTM A395 Steel AISI C1040 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: Buna-N Viton J002207-021 J002207-022 J002207-081 J002207-082
