Product Description:

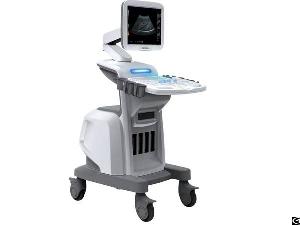

Canyearn a85 vascular color doppler trolley ultrasound machine
General Specification
1. Main Features
Operationg
Syetem Window 7
Monitor 15 inch LED high-resolution monitor
Scanning Mode B, 2B, 4B, B/M, 3D image reconstruction
Keyboard Back-lit Silicone Keyboard (option)
Cine Loop Up to 1024 frames
Gain 10-128dB
TGC 8 segment
Scanning Depth Up to 240mm
Dynamic Range 0-100dB
Pseudo-color 40, or customized
Body Marking 140
Focus 4
Magnification 0.8-6.0
Probe Connector 4
Language Chinese/English/Spanish
Matching Printer Laser/Vedio/Inkjet/Thermal printer
Peripheral Port USB, VGA, DICOM3.0, RS232
Measurement & Calculation B-mode: Distance, Perimeter, Area, Volume, Angle, Histogram, Cross Section, Hip Joint Angle M-mode: Heart Rate, Time, Gradient
Image Processing Technologies THI, Pre-process, Post-process, Dynamic Range, Contrast, Frame Correlation, Average Line, Edge Enhancement, Black-white Change over, Gray-scale Transformation&Adjustment, Brightness, Gamma Correction
Diagnostic System Technology Digital Beam Forming
Intelligent Depth Gain Control
Real-time Dynamic Receiving Filtering
Ultra Wide-band Frequency Conversion Technology
Digital Frequency Scanning
Embedded High Speed Processor
Tissue Harmonic Imaging
Real-time Dynamic Aperture
Real-time Dynamic Receiving Focus
2. Applications
Abdominal(Liver, Gallbladder, Spleen, Kidney, Pancreas)
Gynecology(Uterus, Cervix Uterus, Endometrium, Ovary, Ovarian Follicle, Hydatoncus, Enclosed Mass)
Obstetric(AC, BPD, CRL, FL, THD, GS, OFD, HUMERUS, TIDIA, ULNA, HC, TAD, APTD, FTA, AFI, Analytic report of fetus and the growth curve)
Cardiology(LV, LV Function, Aorta, Mitral, Valve)
Urology(Left Renal Volume, Right Renal Volume, RUV, Prostate kidney)
Small Parts(Ophthalmology, Thyroid, Jaw and Face)
3. Standard Configuration
Main system unit, 3.5MHz Convex probe, Permanent image storage unit, Specialist report(containing ultrasonic software package), User manual and disc
4. Optional Items
Biopsy Bracket, USB disk
5. Probes Selection
3.5 MHz Convex Probe (3.5-14MHz variable frequency )
7.5 MHz Linear Probe (3.5-14MHz variable frequency )
7.5 MHz Transvaginal Probe (3-10MHz variable frequency)
5.0 MHz Micro-Convex Probe (2-6MHz variable frequency)
7.5 MHz Rectal Probe(80 elements)
6. Advanced Technologies
PC platform
Full Digital Ultrasonic Kernel Engine
One Touch Optimizer
Tissue Harmonic Imaging
3D Imaging Reconstruction
Dicom 3.0
Packaging & Delivery
Packaging Details: Wooden Box Package
Net Weight: 80kg
Gross Weight: 89kg
Package Size: 1044*644*1245mm
Delivery Time: 5-10 working days
Warranty
Two years for main unit (One year warranty for probes)
