Cast-iron-globe-valve-din 3201 F1-pn10-pn16-gg25

Posted at: Offers to Sell and Export | Posted on: Thursday 6 June 2024 2:06 am | Poster last visit: Thursday 13 June 2024 |

Product Category: Main » Distribution and Conditioning Systems and Equipment and Components » Fluid and gas distribution » Valves » Globe valves » Cast-iron-globe-valve-din 3201 F1-pn10-pn16-gg25


Product Photo:

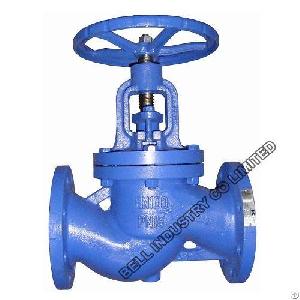

cast iron globe valve din 3201 f1 pn10 pn16 gg25

Similar Products Catalog:
Products Photos Catalog Cast Iron Globe Valve Photos Catalog

Product Description:

Cast-Iron-Globe-Valve-DIN 3201 F1-PN10-PN16-GG25

DIN Cast Iron Globe Valve, maintains %100 tight sealing


through the graphite gasket on the stainless steel disc moving perpendicular to the flow axis and seating on the machined metal seat inside the body. Its is used for steam, Superheated Water, Hot Water, Cold Water, Fluids without acidity or alkalinity properties

-Design Std: EN 13789, DIN 3356

-Size:DN15--DN300

-Body, bonnet: Cast Iron (GG25)

-coating:epoxy electro static powder

-Pressure Rating: PN16, PN10

-flanged: 1092-2 / iso 7005-2, din2532/2533

-Face to Face: EN 558 Seri 1 / DIN 3202 F1

-Pressure Testing: EN 12266-1

-Working temperature: Max. +320°C
