Cast Iron Metal Seat Gate Valve-din 3202 F4 F5-gg25

Posted at: Offers to Sell and Export | Posted on: Thursday 6 June 2024 2:09 am | Poster last visit: Thursday 13 June 2024 |

Product Category: Main » Distribution and Conditioning Systems and Equipment and Components » Fluid and gas distribution » Valves » Gate valves » Cast Iron Metal Seat Gate Valve-din 3202 F4 F5-gg25

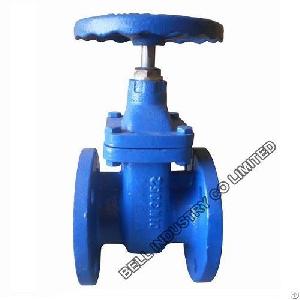

Product Photo:

cast iron metal seat gate valve din 3202 f4 f5 gg25

Similar Products Catalog:
Products Photos Catalog Cast Iron Metal Seat Photos Catalog

Product Description:

Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25

Metal Seated Gate Valves are manufactured to DIN3202


F4 & coated with a tough thermally bonded acrylic coating certified to PED97/23/EC for used for pipeline isolation, suitable for potable water, wastewater and sewage duties and buried service.

-Design Standard: BS5150/BS5163/DIN3352/JIS B2043

-Size:DN40--DN300

-Body Cast Iron EN-JL1040, GG25

-Wedge Cast Iron EN-JL1040

-Nominal Pressure: 10Bar/16Bar

-Face to Face Dimension: BS5163/DIN3302 F4/JIS B2002

-Flange Connection: ASME B16.1 CL125/ASME B16.5 CL150/, DIN 2501 PN10-16/EN1092 PN10-16 /JIS B2212 10K

-Inspection and Test: ISO 5208/EN 12266-1/ API598

-Temperature range: -10°C/+120°C
