Product Description:

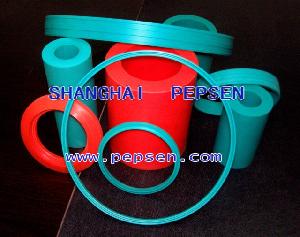

Casting PU Tube For Seal Machining, Polyurethane tube
General
MF-MPT-95 is a hydrolysis resistant PU
tube with a hardness of 95 +/-2 Shore A with very good physical properties. The resistance to most common hydraulic fluids and oil-water emulsions makes it a very universal material for seal applications.
Chemical resistance
Resistant to Sea Water, HFA, HFB fluids, mineral oils, vegetable oils, silicone oils, biodegradable oils, ozone, cold oxygen
Main application
Static and dynamic seals (standard and special), wipers, O-rings, back-up rings, flange seals, rotary seals, low friction and wear, high extrusion resistance, compatibility with water, excellent low temp characteristics.
Analysis and Evaluation
The properties relate to fundamental values for polyurethane products. Values mentioned above are corresponding to GB/T (stricter) or DIN standards and have been tested on standardized plates in the laboratory. All immersion tests are made under laboratory conditions.
Specification of polyurethane drum
Name Size(OD*ID*L) Hardness Color
33*150 95+/-2 Red/Green
38*13*150 95+/-2 Red/Green
48*22*150 95+/-2 Red/Green
58*27*150 95+/-2 Red/Green
65*35*150 95+/-2 Green
70*40*150 95+/-2 Green
68*37*150 95+/-2 Red/Green
78*47*150 95+/-2 Red/Green
80*50*150 95+/-2 Green
88*52*150 95+/-2 Red/Green
90*60*150 95+/-2 Green
98*62*150 95+/-2 Red/Green
105*75*150 95+/-2 Green
108*67*150 95+/-2 Red/Green
110*80*150 95+/-2 Green
118*77*150 95+/-2 Red/Green
122*95*150 95+/-2 Red/Green
128*87*150 95+/-2 Green
130*75*150 95+/-2 Red
130*95*150 95+/-2 Green
133*97*150 95+/-2 Green
143*107*150 95+/-2 Green
150*125*150 95+/-2 Green
153*117*150 95+/-2 Green
163*127*150 95+/-2 Green
170*132*150 95+/-2 Green
173*132*150 95+/-2 Green
188*142*150 95+/-2 Green
198*152*150 95+/-2 Green
208*180*150 95+/-2 Green
240*200*150 95+/-2 Green
320*280*150 95+/-2 Green
330*290*150 95+/-2 Green
340*305*150 95+/-2 Green
*Custom size, hardness and colors of PU tube are available
* Custom polyurethane drum is available 30 days after your requirements or drawings
