Product Description:

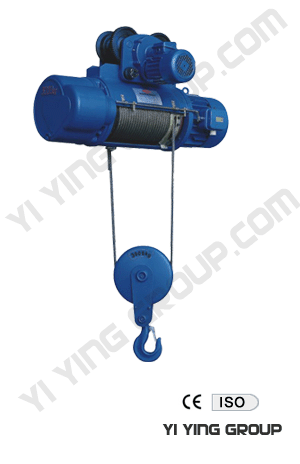

Type CD, wire-rope electric hoist is a kind of small-lifting equipment, it can mounted on single beam
overhead crane, gantry cranes, jib type CD, electric hoist as only one normal speed which can satisfy normal application, It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops, essentially in raising working efficiency and improving working conditions.
CD1-Electric hoist Parameters:
Model 0.25TON 0.5TON 1TON 2TON 3TON 5TON 10TON
Capacity ton 0.25 0.5 1 2 3 5 10
Standard lift m 3-9 6-12 6-30 6-30 6-30 6-30 6-30
Lifting Height m/min 88/0.8 88/0.8 88/0.8 88/0.8 88/0.8 88/0.8 77/0.7
Running Speed m/min 20/30
Wire Rope type 6*19-3.6 6*37-4.8-180 6*37-7.4-180 6*37-11-155 6*37-13-170 6*37-15-200 6*37-15-200
I beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Loop track minimum Radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
Voltage V 380 380 380 380 380 380 380
Frequency HZ 50 50 50 50 50 50 50
Phase 3 3 3 3 3 3 3
