Centric Wafer Butterfly Valve Pn10 / 16

Posted at: Offers to Sell and Export | Posted on: Thursday 6 June 2024 1:50 am | Poster last visit: Thursday 13 June 2024 |

Product Category: Main » Distribution and Conditioning Systems and Equipment and Components » Fluid and gas distribution » Valves » Butterfly wafer pattern valves » Centric Wafer Butterfly Valve Pn10 / 16

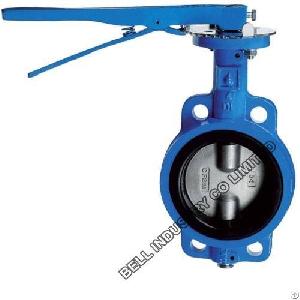

Product Photo:

centric wafer butterfly valve pn10 16

Similar Products Catalog:
Products Photos Catalog Centric Wafer Photos Catalog

Product Description:

Centric wafer butterfly valve pn10/16 with pin

Cast iron wafer butterfly valve with concentric disc,


seal on body design. Designed and manufactured in accordance with DIN EN 593. Bi-directional bubble tight seal, vulcanised seat, suitable for vacuum applications. High strength one-piece shaft, suitable for high repetition actuation.

-Design Std:EN 1074, EN593, EN558-1, API609

-Size:DN25--DN600

-Pressure Rating: PN10, PN16

-Body: Ductile Iron GGG40/50 or Cast Iron GG25

-DISC: Ductile Iron, Cast Iron. SS304 (CF8) Stainless steel

-Seat: NBR, EPDM, VITON, PTFE, NEOPRENE

-Pin: Stainless Steel

-Face to Face: EN 558-1 Series 20 -(former DIN 3202-K1).

-Operate: Handwheel or Worm Gear, Actuator or pneumatic.

-Pressure Testing:DIN EN593/DIN EN12266-1

-Top Mounting Flange: ISO 5211

-Working temperature: EPDM from -40°C to +135°C ; NBR from -23°C to +82°C; VITON from -26°C to +230°C; PTFE from -25°C to +150°C
