Product Description:

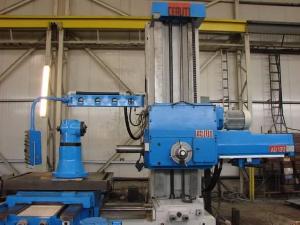

Boring Mill Table Type with rotary table & DRO CERUTI model AD 130
Year of manufacture 1982
Very
good working condition
Technical details :
spindle boring diameter 130 mm
spindle milling diameter 190 mm
range spindle revolution quantity 24
spindle speeds range 5-1000 rpm
facing chuck diameter 650 mm
facing slider diameter 250 mm
max speed facing diameter 1200 mm
range facing chuck number 16
speeds range facing chuck 5-160 rpm
table surface 1400-1550 mm
longitudinal travel of table 2700 mm
vertical travel of table 2000 mm
transversal travel of table 2000 mm
axial spindle travel 900 mm
max workpiece weight 10 000 kg
main engine power 20 HP
machine weight 25 000 kg
equipment :
facing chuck
digital readout
universal head
technical documentation
