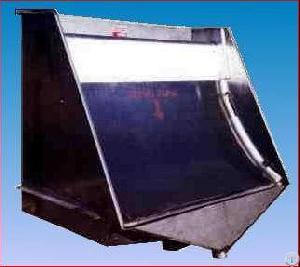

Champion Sieve Bend Screens
Posted at: Offers to Sell and Export | Posted on: Friday 29 March 2013 9:37 am | Poster last visit: Friday 29 March 2013 | Targeted Countries: China | India | Kuwait
Product Description:
Champion sieve bend screens
Champion Screens sieve bend screening unit is the answer to many de-watering,
sizing, and wastewater cleanup problems.
Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.
A sieve bend consists of a concave curved profile wire screen (also known as wedge wire / v / vee / wire screen) mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.
Sieve bends are also known as DSM screens, after Dutch State Mines, who introduced the sieve bend as a static sizing screen having ten times greater capacity than conventional vibrating screens.
As slurry flows down the screen each wedge wire's sharp leading edge slices away a thin layer of water and small-particle solids. Larger particles continue down the screen surface, with much of the liquid removed. Separation size is considerably smaller than screen openings, usually about one half the opening size.
Please contact us for more information.
Company Contact:
Contact Name: Rajasekar Rao
Company Name: Champion Screens Manufacturing Company
Email:
Tel: 91 8571 231755
Fax: 91 8571 231755
Street Address: 1-32 Opposite Gmr
Polytechnic College Nimmanapalli Road,
Madanapalli, Andhra Pradesh 517325 India
Website: https://wedgewirescreens.co.in
Member name: championfilters
Country:
India
Member Since: 28 March 2013
Total Leads: 50 championfilters Import Export Business Leads
Business focus: Wedge Wire Screens, Wedge Wire Panels, Wedge Wire Rotary Drum Screens, Dewatering Panels
Chat:
Verify: Safe Import Export Tips
Champion Screens sieve bend screening unit is the answer to many de-watering,
sizing, and wastewater cleanup problems.
Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.
A sieve bend consists of a concave curved profile wire screen (also known as wedge wire / v / vee / wire screen) mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.
Sieve bends are also known as DSM screens, after Dutch State Mines, who introduced the sieve bend as a static sizing screen having ten times greater capacity than conventional vibrating screens.
As slurry flows down the screen each wedge wire's sharp leading edge slices away a thin layer of water and small-particle solids. Larger particles continue down the screen surface, with much of the liquid removed. Separation size is considerably smaller than screen openings, usually about one half the opening size.
Please contact us for more information.
