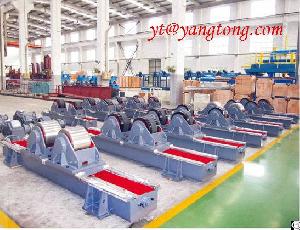

Chgk Lead-screw Adjustable Turning Roll
Posted at: Offers to Sell and Export | Posted on: Monday 10 August 2015 2:09 am | Poster last visit: Thursday 20 August 2015 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Welding and soldering and brazing machinery and accessories and supplies
» Welding and soldering and brazing accessories
» Welding positioner and manipulator
» Chgk Lead-screw Adjustable Turning Roll
Product Description:
Welding turning roll, which is mainly used for the welding, sanding, line with rubber and assembling
of cylinder, is divided into self-alignment type, adjustable type, moving type, anti-drift type, etc. Metallic roller, combination of metallic and rubber roller and PU roller are roller material options for customer.
Self-alignment type can be aligned by itself according to the size of cylinder. Adjustable type can be adjusted by lead-screw or bolt shifting.
We also can design and manufacture according to customers' requirements.
.
Main Technical Parameter
Model Max loading(t) Working range(mm) Roller sizes(D×W)(mm) Motor power(kw) Roller linear speed(m/h)
Rubber Metallic
Chgk2 2 ￠180-2100 ￠200×80 ￠190×16 0.18×2 6-60
Vfd
Chgk5 5 ￠250-3000 ￠250×100 ￠240×20 0.37×2
Chgk10 10 ￠320-3800 ￠300×120 ￠290×38 0.55×2
Chgk20 20 ￠400-4200 ￠350×120 ￠340×45 1.1×2
Chgk40 40 ￠600-4500 ￠400×120 ￠390×60 1.5×2
Chgk60 60 ￠700-5000 ￠450×120 ￠440×70 1.5×2
Chgk80 80 ￠700-5500 ￠500×120 ￠494×80 2.2×2
Pls feel free to contact us!
