Product Description:

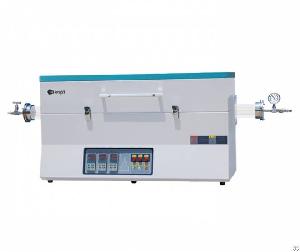

CHY-T12100C Laboratory Three Zone 1200 degree Tube Furnace lab Tube Furnace CHENGYI Three Zone Tube
Furnace Manufacturer
1.O.D100*1400 high purity quartz tube
2.High quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
CHENGYI Three Zone Tube Furnace APPLICATION
1.Laboratory heat thermal processing
2.High Vacuum Sintering Heating Annealing Brazing
3.Laboratory Thin Film Preparation, Nano tube growthing
4.Laboratory CVD system, graphene growthing, preparation.
Tube Furnace PARAMETERS
Product Name 1200 Degree Three Zone Tube Furnace
Model T12100C
Furnace Door Open Type Furnace
Display Model Highlight LED display
Maximum Temperature 1150℃
Working Temperature ≤1100℃
Heating rate ≤20℃/min Suggest:10℃/min
Heating zones Single heating zone
Quartz Tube Diameter O.D100*1400mm
Inner Diameter I.D 94*1400mm
Heating Zone Length 220+440+220mm
Constant Heating Zone 100+300+100mm
Control mode Intelligent PID auto control
Temperature Accuracy ±1℃
Temperature curve 30 segments programmable
Over heat alarm Have
Overcurrent protection Have
Thermocouple Failure Protection Have
Temperature Sensor K-type thermocouple
Heating Element Fe-Cr-Al Alloy doped by Mo
Quartz Tube Material High Purity Quartz
After-sales service 12 month warranty, durable maintaince and repair support
Power Supply 220V 50HZ
Rated power 8.0kw
Overall dimensions 1060×470×610 (mm )
Packing 3-ply wooden case
Accessories Protective Glove, Crucible Tong, Crucible, Quartz Tube, Vacuum Flange, User Manual.
This three zone tube furnace can be used for laboratory heat thermal processing and high vacuum sintering heating annealing brazing.
