Product Description:

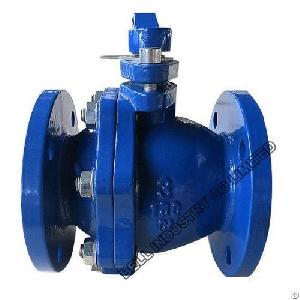

Class 125 Cast Iron Ball Valve-Two Piece body-Blowout Proof stem
The ANSI ball valve is a full bore
quarter turn valve for an on/off application. It can be manual or automatic (electric or pneumatic). The variety of seats and body materials allows it to respond to multiple applications in the industry.
-Structre type: CAST IRON FLANGED BALL VALVE, REDUCED PORT, HANDLE LEVER
-Designed to ANSI B16.1, MSS SP-72, API608
-Two-piece body construction
-Size:DN15--DN250
-Pressure Rating: 125PSI W.S.P
-body: gg25, ggg40
-Ball: AISI304, -Seat: PTFE, RPTFE
-Face to face to ANSI B16.10 CLASS 125
-Flange Drilling: ANSI 125/150
-Mounting Pad: ISO5211
-Test and Inspection: API 598
-Working temperature:-20 to +120℃
