Product Description:
FM types machines are professional equipment for foam concrete.

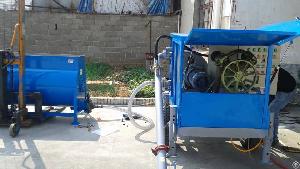

1. Structure
It includes four parts,
a belt conveyor, a mixer, a pump and a built-in foam generator inside the
pump. The equipment is easy to install, dismantle, transport, and construct at site. The equipment
has been fully debugged in factory.
It is a mobile unit which blends foam concrete from sand, cement, water, foaming agent directly at
the building site. The machine continually mixes all ingredients mechanically, which allows for
fresh concrete with the best properties. The process is controlled and supervised by a control panel.
At least four people are required to run the machine, one machine operator who control machine, two provides the machine with raw materials and one person to place the foam concrete in a mold.
The machine is easy to service thanks to the well-known component manufacturers which produces
the high-quality components. Cleaning can be done on site with the built-in high-pressure hose.
Technical Parameter:
Fm-5/12/20/25
Max. Outpt (m3/h) 5-25
Vertical Delivery Distance (m) 20-60
Horizontal Delivery Distance (m) 50-100
Pumping Pressure (Mpa) 0.8-1.5
Conveyor Belt Dimension (mm) 3250*400*500
Conveyor Belt Power (kw) 1.1
Mixer Dimension (mm) 2800*700*1100
Mixer Power 3-7.5
Mixer Speed (turn/min) 50
Water Pump (kw) 0.75
Pump Power (Kw) 8-20.5
Pump Dimension (mm) 1000*830*1100
Casting Hose (m) 60
Total Weight (Kg) 1300
1, Technical parameters due to technological improvements and changes without prior notice.
2, If you needs different motor system, please contact us
