Cnc Coil Winding Wire Guide Nozzle, Tungsten Carbide Nozzle, Wire Guide Tube

Posted at: Offers to Sell and Export | Posted on: Monday 19 December 2011 3:33 am | Poster last visit: Tuesday 12 August 2014 |

Product Category: Main » Distribution and Conditioning Systems and Equipment and Components » Fluid and gas distribution » Hardware and fittings » Nozzles » Cnc Coil Winding Wire Guide Nozzle, Tungsten Carbide Nozzle, Wire Guide Tube

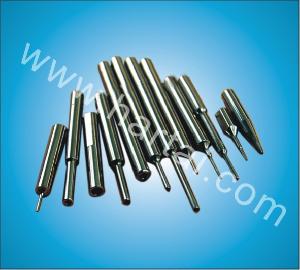

Product Photo:

cnc coil winding wire guide nozzle tungsten carbide tube

Similar Products Catalog:
Products Photos Catalog Cnc Coil Winding Wire Photos Catalog

Product Description:

We supply coil winding nozzle for Nittoku coil winding machine, TANAC CNC Automatic coil winding machine



and other brand coil winding machines, There is description and features about it as following:

Coil winding wire guide Nozzles(TungstenCarbide nozzle)also call wire guide tubes, wire guide eyelets, wire guide needles, it is used on coil winding machine.it is made precisely of hard alloy and enjoys the hardness up to HRA90.Two terminals andinnerle are all receive mirror surface treatment to ensure enameled wire makes no scrape. High hardness, resistance to flexure, block and impact .

Coil winding wire guide nozzles(Hard alloy nozzle)Tungste carbide nozzle Features:

1. High Wear Resistance

This is assured by the choice of materials for wear elements possessing a minimum hardness in excess of Vickers 1, 000 (HRC 70).

2. Scratch-Proofing

Eliminate wire insulation film damage, low friction resistance, stable wire tension. The wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 -4 micro inches Ra or better, material permit.

3. Straightness and Stiffness

Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle concentric to the locating? To within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.

4. Precise Exit Radii

Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.



Company Contact:

hartai photo
Contact Name: Jerry Zheng
Company Name: Hartai Technology Industry Co., Ltd.
Email: Email
Tel: 86-769-86016320
Fax: 86-769-86372427
Street Address: Liuwu Industrial Park,
Shijie Town, Dongguan City,
Guangdong Province, China
Member name: hartai
Country: China-CN China
Member Since: 11 June 2011
Total Leads: 32 hartai Import Export Business Leads
Business focus: Tungsten Carbide Nozzle, Ruby Nozzle, Ceramic Eyelet, Mechanical Tensioner, Tensioner, Ceramic Stick, Wire Guide Pulley
