Cnc Nested Based Router Missile-s9
Posted at: Offers to Sell and Export | Posted on: Monday 27 November 2017 3:51 am | Poster last visit: Monday 16 July 2018 |
Product Category: Main
» Tools and General Machinery
» Hand tools
» Power tools
» Power routers
» Cnc Nested Based Router Missile-s9
Product Description:

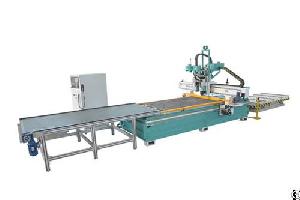

CNC Nested Based Router Missile-S9
MISSILE-S9 Product Parameters
XYZ working area 1300*2500*200mm
XYZ
Traveing Positioning Accuracy ±0.05mm
XYZ Repositioning Accuracy ±0.05mm
Table Surfce Vacuum table
Max.Traveling Speed 60000mm/min
Max.Working Speed 25000mm/min
Spindle Power HSD Air-cooling 9KW
Drive&Motor YASKAWA servo
Tool Storage Capacity 12
Drilling Capacity 9
Working Voltage AC380V/50Hz/3PH
Operating System Syntec Control System
CNC Nested Router MISSILE-S9 Features
S9 is professional machine for panel furniture production . It is equipped with 9KW ATC Spindle( 12 carousel magazine ) ; Italy FAM 5+4 boring heads which can meet all kind vertical holes drilling ‘s requirements . S9 has multifunction : routing, drilling, cutting, edge chamfering etc.
S9 is CNC Router Best in China, also with automatic push function which can push the finished panel board from the worktable and collect the dusts during working at the same time . In this way, it is very easier for the operator to unload the panel board and new feeding board easily be strong sucked on the worktable.
Automatic loading snd unloading. Automatic marking label system, also can be optional.
CNC Router, Acrylic Cutting Machine, Cabinet Making Machine Supplier
Company Contact:
Contact Name: Joyee Wang
Company Name: Jinan Missile Cnc Equipment Co.ltd
Email:
Tel: 8653188233860
Fax: 8653188233860
Street Address: Room3-605, Yinhe
Building, No.2008 Xinluo Street,
Gaoxin District, Jinan City,
Shandong, China
Jinan, Shandong 250013
China
Website: https://www.missilecnc.com
Member name: missilecnc
Country:
China
Member Since: 27 November 2017
Total Leads: 14 missilecnc Import Export Business Leads
Business focus: Cnc Router, Acrylic Cutting Machine
Chat:
Verify: Safe Import Export Tips
MISSILE-S9 Product Parameters
XYZ working area 1300*2500*200mm
XYZ
Traveing Positioning Accuracy ±0.05mm
XYZ Repositioning Accuracy ±0.05mm
Table Surfce Vacuum table
Max.Traveling Speed 60000mm/min
Max.Working Speed 25000mm/min
Spindle Power HSD Air-cooling 9KW
Drive&Motor YASKAWA servo
Tool Storage Capacity 12
Drilling Capacity 9
Working Voltage AC380V/50Hz/3PH
Operating System Syntec Control System
CNC Nested Router MISSILE-S9 Features
S9 is professional machine for panel furniture production . It is equipped with 9KW ATC Spindle( 12 carousel magazine ) ; Italy FAM 5+4 boring heads which can meet all kind vertical holes drilling ‘s requirements . S9 has multifunction : routing, drilling, cutting, edge chamfering etc.
S9 is CNC Router Best in China, also with automatic push function which can push the finished panel board from the worktable and collect the dusts during working at the same time . In this way, it is very easier for the operator to unload the panel board and new feeding board easily be strong sucked on the worktable.
Automatic loading snd unloading. Automatic marking label system, also can be optional.
CNC Router, Acrylic Cutting Machine, Cabinet Making Machine Supplier
