Product Description:

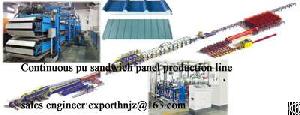

PU sandwich panel production line to produce all kinds of pu sandwich panel.
the main process flow for
pu sandwich panel production line:
UncoilingFilm coating and cuttingCorona Treatment FormingJoint roller tablePlate pre-heating Mixing and foamingDouble belt curingBand saw cuttingQuick roller tablePanel coolingAuto stackingAuto packing
Production line equipment composition
1 Decoiler, 2 Coil car, 3 Filming andvertical cutting unit, 4 Corona unit, 5 Upper micro ribber, 6 Side trimming unit, 7 Lower micro ribber, 8 Upper roll forming machine, 9 Lower roll former for the wall panel, 10 Lower roll former for the hidden fix wall joint, 11 Lower roof roll forming machine, 12 Displacing system, 13 Upper roll forming machine platform, 14 Upper and down press to double belt inlet conveying roll gang, 15 Upper&down steel plate guiding device, 16 Strips infrared lamps preheating device, 17 Side sealing tape decoiler, 18 4 components continuous high pressure foaming machine, 19 Raw material distributing device, 20 Double belt laminating conveyor, 21 Hot air circulation device, 22 180 degree rotation band saw sawing machine, 23 Dust absorption mechanism, 24 Panel cooling machine, 25 Stacker, 26 Packing machine, 27 Electrical control systen, 28 Remote service platform, For the specification and quoation, pls feel free at any time.
We wlecome your inquiry and looking forward to establish long term business with you.
