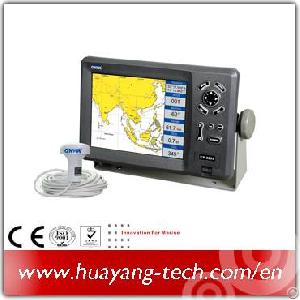

Color Display Marine Gps Plotter And Echo Sounder Combo
Posted at: Offers to Sell and Export | Posted on: Thursday 24 January 2013 3:45 am | Poster last visit: Saturday 21 March 2020 | Targeted Countries: New Zealand
Product Description:
Onwa
Model: kp-8299c
Color lcd gps plotter sounder
Feature:
1. High Resolution
KP-8299C: 8 inches
Color TFT Display, 800*600 pixels
2. 8 Color or 8 Level Amber Presentation
3. 50/200 KHz Transceivers, Output Power:
KP-8299C 600 Watt
4. Blue, Light Blue, or Black Background Color
5. 8 Range Scales, from 0-15 to 0-1000 Feet
6. Range Offset to 1000 Feet, Maximum Offset Range of 2000 Feet
7. Automatic Range and Grain Selection Mode
8. A-Scope Display for Rapid Fish ID and Detection
9. Multiple Display Modes:
10. Digital Display of Speed, Depth, Water Temp and Position
11. Adjustable Bottom or Fish Alarm
12. Calibration in Feet, Fathoms or Meters
13. Built-in Picture Simulator
14. SD-cards slot for C-Map and user data
15. C-Map MAX and K-Chart Selectable
16. Tide table
17. Versatile Display Mode Include
18. GOTO track navigation
19. MAP orientation select
20. Proximity waypoints alarms
21. Perspective View
Specification
Plotter characteristics
1. Waypoints/Icons: 15, 000 waypoints with name, symbol, 10 proximity waypoint.
2. Route Memory: waypoint up to 200 points each, plus MOB and Track Navigator or Goto Track modes
3. Tracks: 30, 000 points automatic track log; 15 saved track (up to 2000 track points each) Let you retrace your path in both directions
4. Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm.
5. Palette
- Normal
- Daylight: Exposed to sunlight
- Night: In dark environment
- NOAA Paper chart color
6. Tides: Tide Data
7. Projection: Mercator projection
8. Position format: Lat/Lon
9. Base Map: Built-in ONWA K-Chart
10. External Map: SD cards slot for user settings
11. User data storage: Internal backup of user settings, or external SD-card
12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm
13. Polotting scales: 0.01nm to 1, 000nm
14. Nav Data Input/Output:
- Input:
$--bwc, $--bwr, $--dbt, $--dpt, $--gga, $--gll, $--hdg, $--hdm, $--hdt, $--mda, $--mtw, $--rma, $--rmb, $--rmc, $--tll, $--ttm, $--vdr, $--vhw, $--vtg, $--wpl, $--zda
- Output:
$--aam, $--apb, $--bod, $--bwc, $--gga, $--gll, $--rmb, $--rmc, $--vtg, $--xte, $--zda
- Output for autopilot:
$--aam, $--apb, $--bod, $--vtg, $--dbt, $--dpt
15. PERSPECTIVE VIEW: On/off
Echo sounder
1. Echo Color 8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black.
2. Basic Range Meters: 5/10/20/40/80/150/200/300/600
Feet: 15/30/60/120/200/400/600/1000/1500
Fathoms: 3/5/10/20/40/80/100/150/200
Passi/Braza: 3/5/10/30/50/100/150/200/300
The basic ranges can be changed on the system menu.
3. Range Shift Up to 300 meters (1500 feet, 200 fathoms, 300 passi/braza)
4. Zoom Range Times 2, 3, 4 and 5 ranges
5. Bottom Lock Expansion Range 5/10meters, 10/20feet, 2/5fathoms, 2/5passi/braza
6. Auto Mode Automatic adjustment of range and gain
7. Display Mode High Frequency (200K), Low Frequency (50K), Dual (200K and 50K 1/2display on each), Zoom (200K and 50K zoom) and A-scope Display
8. Zoom Display Marker Zoom, Bottom Zoom and Bottom-lock Expansion
9. Display Advance Speed Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1
10. TX Frequency
11. Power Output 50 and 200kHz (alternately transmitted)
kp-8299c/1299c: 600w
12. Pulse-length/TX rate
13. Interface Rejecter
Company Contact:
Contact Name: Susan
Company Name: Huayang Technology (hk) Co., Ltd
Email:
Tel: 86-755-83289123
Fax: 86-755-83299016
Street Address: Unit 29e/f, East
Tower, Guangye Building, Fuhua Rd,
Futian District, Shenzhen, China
Member name: Shenhuayang
Country:
China
Member Since: 08 August 2012
Total Leads: 49 Shenhuayang Import Export Business Leads
Business focus: Marine Radar, Gps Navigation, Fish Finder, Gps Chart Plotter, Ecs, Ecdis, Auto Pilot, Ais, Satellite Phone
