Product Description:

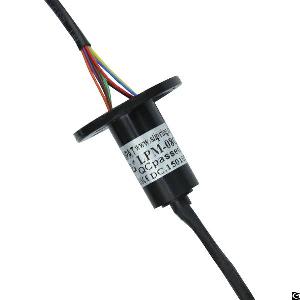

LPM-08C Miniature Slip Ring
Description:
The LPM-08C miniature slip ring is a standard, off-the-shelf
unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPM-08C allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.
Features:
8 circuits models
2 amps per circuit, 240VAC/DC
Precision assembly to provide exceptional rotational life
Speed up to 300 rpm continuous
Gold-Gold contacts
Flexible, color-coded, silver-plated lead wires
Superior handling of low level control signals
Metal housing optional
Advantage
Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360°continuous rotation
Addition of special components
We are factory specializing in the manufacture and export of slip ring for more than 20 years. Our slip rings are used in any electromechanical system that requires unrestrained, 360°continuous rotation while transferring power or signal from a stationary to a rotating structure.
Notes:
We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email
please contact us for your special needs so that our engineers provide the suitable solution and recommendation for you!
