Product Description:

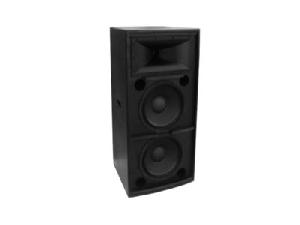

The TRANS-AUDIO TK600 loudspeaker enclosures provide a versatile system that is designed for high quality
distributed sound reinforcement or high performance monitoring or fixed installation.
The loudspeaker’s high-frequency section comprises a 1-inch diaphragm compression driver coupled to a symmetrical (90 degrees horizontal by 40 degrees vertical) constant directivity horn. A pair of high-power 12-inch magnet cone drivers, mounted in an optimally vented enclosure, reproduces low frequencies.
Frequency range (-6dB) 48 Hz to 20k Hz
Sensitivity ( f>80Hz) 98dB
SPL (AES) 126dB SPL
Peak SPL 129dB SPL
Nominal directivity ( -6dB) 90° horizontal, 40° vertical
Nominal impedance 4 Ohm
Transducers 12" (380mm) bass driver
1" (25.4mm) compression driver
Rated Power 600W AES, 1200W peak
Recommended amps 400 to 1000W into 4 Ohms
Cabinet 18mm plywood with internal reinforcements
Crossover Air core inductors, MKP capacitors, wirewound resistors
Finish:BLACK
Protection grill Acoustically transparent perforated steel, 1.5mm thick
Connectors 2 x Neutrik SPEAKON NL4MP
Handles 2 integrated handles on side
Mounting on stand Put it on ground
Rigging
5 standard points
Dimensions (H x W x D) 1000 x 476 x 500 mm
Weight Net unit weight 48kg
Gross weight, packed 51kg
1. Sensitivity is the average SPL measured over the component s rated bandwidth
2. Power rating displays the long term AES power handling capacity using pink noise with a 6 dB crest factor over the component.s rated bandwidth
3. Directivity is averaged over the 1000Hz-12 kHz range.
4. The SPEAKON cables are wired, hot pin 1+, cold pin 1-.
