Product Description:

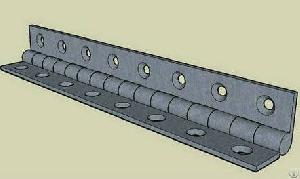

Piano Hinge, Continuous Hinge
Material: Stainless steel 304/316, galvanized steel, mid steel,
brass and aluminum.
Screw hole: drilled/undrilled.
Sizes (normal) available:
L (length) =1800mm/2000mm/2500mm as standard, others on request.
W(open width)=1-1/16, 1-1/5, 1-1/4, 1-3/8, 1-1/2, 2, 2-1/2, 3, 4.0
T (thickness) =0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm
Pin diameter: Upon thickness, 2.0mm, 2.5mm, 2.8mm, 3.0mm, 4mm, 5mm, 7mm, 8mm
Knuckle=15mm, 20mm, 25mm, 30mm, others on request.
Finish: self color, satin stainless steel, polish stainless steel, brass/nickel plate, others.
Package: poly bag+box/carton+pallet.
Light duty, medium duty, heavy duty according to different thickness gauge.
Application: industrial boxes, facilities doors, cabinet doors. Metal works or woodworking.
Production lead time: it depends usually from 7 days to 15 days.
Small order quantity is acceptable.
Bespoke is welcome according to sample/drawing.
