Product Description:

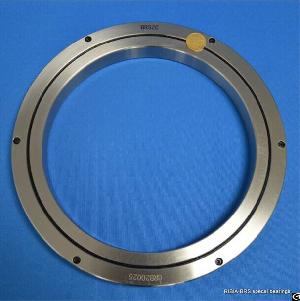

CRB30025UU crossed roller bearing
d 300 mm
D 360 mm
B 25 mm
Cr 76.3 KN Basic dynamic load rating
Cor
178 KN Basic static load rating
Mass 5.88 kg
structure: Standard Type Crossed Roller Bearing (Full complement), sealed both sides, Normal Clearance
Double outer rings Crossed roller bearings
BRS High Precision Cross Roller Bearing IKO CRB series Features
1. Sustain radial, axial and moment loads
2. Make the best use of space
3. Stable Rotation and high rigidity & running accuracy supplied with normal clearance, little clearance or Even under a pre-load.
Applications
IKO CRB series cross roller bearings are specially suitable for the applications where
space is limited, while high rigidity and high rotation accuracy are required. Such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.
BRS High Precision Cross Roller Bearing IKO CRB series
Crb3010
Crb4010
Crb5013
Crb6013
Crb7013
Crb8016
Crb9016
Crb10020
Crb11020
Crb12025
Crb13025
Crb14025
Crb15025
Crb15030
Crb20025
Crb20030
Crb20035
Crb25025
Crb25030
Crb25040
Crb30025
Crb30035
Crb30040
Crb40035
Crb40040
Crb40070
Crb50040
Crb50050
Crb50070
Crb60040
Crb60070
Crb600120
Crb70045
Crb70070
Crb700150
Crb80070
Crb800100
Crb3010uu
Crb4010uu
Crb5013uu
Crb6013uu
Crb7013uu
Crb8016uu
Crb9016uu
Crb10020uu
Crb11020uu
Crb12025uu
Crb13025uu
Crb14025uu
Crb15025uu
Crb15030uu
Crb20025uu
Crb25025uu
Crb30025uu
