Product Description:
Product introduction:

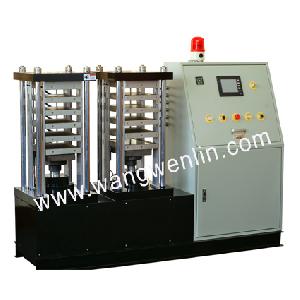

This high effecient equipment was made for professional manufacturer of personality
cardsIt is low wastage rate, easy to operate effectively.As the professional smart card automatic laminator(Smart card making equipment)it also can satisfy the PVC card company and PVC card factory enough to produce the second generation identification cards and top quality certificate cards、banking cards、one card solution for bus 、high way、social insurance card and so on. It is good enough for 8K, 16K offset printing machine users .
1.Simple, vividly man-machine screen, easy to operate
2.HROA international standard oil cylinder, balance pressure, low noise, small vibration
3.It adopts imported PLC controlling system, touch-screen, without complex operating PCB table .
4.Stable Working, automatic alarming
5.Single cylinder pack out, take apart for cleaning basin, saving energy and high effeciency, will never jam
6.Steps of pressure choosing and output, to meet kinds of technology's demand.
7.Temperature and pressure both can set and balance automatically8
.Button and touch screen double switch off can ensure the working procedure safety.
9.Suitable for laminating and processing kinds of cards(special for contactless IC card laminating and processing )
Technical parameter:Smart card automatic laminator(Smart card making equipment)Specification Parameter
Model WL-FA3000(PLC smart )
Power Supply 380V 50HZ
Power 14KW
Pressure method Hydraulic
Pressure steps Heating :5 steps, cooling :1 step
Controlling method PLC
Pressure bound <0-16>mpa precision:±1mpa
Temperature bound <0-200>℃ Precision:±2℃
Time bound <0-9000>Seconds Precision:±1Second
Laminating area 210mm*297mm
Production speed ≥2000cards/hour
Laminating layers Five heating and five cooling
Cooling method Water cycling
Heating method Imported electric heating element
Outline dimension L1780mm*W510mm*H1480mm
Weight 1500kg
