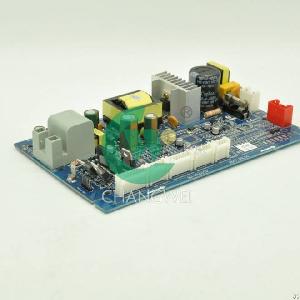

Csa Approval Constant Temperature Water Heater Control Board Bw-hk002r
Posted at: Offers to Sell and Export | Posted on: Monday 13 December 2021 2:38 am | Poster last visit: Monday 13 December 2021 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Heating and ventilation and air circulation
» Heating equipment and parts and accessories
» Commercial water heaters
» Csa Approval Constant Temperature Water Heater Control Board Bw-hk002r
Product Description:
gas water heater control board Function description
1) It works with a display.
2) It works with a
ventilator.
3) It works with a on-off valve, a proportional valve and a section valve.
4) It is with a buzzer.
5) It has AC ionization flame signal detection.
6) Status keeping function: If the nP menu was set as ON, after power on again, the system
will return to the last status before the power is cut off.
7) Flue pipe block-up protection.
8) Malfunction protection and warning function.
9) Compliance with Standard: BS EN298: 2012. ANSI Z21.20 -2014. CAN/CSA C22.2 No. 60730-2-5-2014.
More information you can click here
Main technical parameters
Working voltage range 90VAC ~ 120VAC
Rated voltage 120VAC 60Hz
Power frequency 50/60Hz±5%
Rated frequency 50Hz
Dielectric strength(V/1min) 1800V, 0.5mA, 3S
Working ambient temperature -10℃~70℃
Ambient temperature -20℃~70℃
Life cycle ≥50, 000 times
Temperature setting range 35-65℃
Pre- cleaning time 2S
After cleaning time 20s
Start-up water flow ≤3L/min
Closing water flow ≤2.5L/min
Ignition time 8±1S
Cleaning time before 2nd ignition 3S
Max. allowable No. of ignition 2
Valve moving pulse 0.5±0.05S
24V Valve open voltage ≥24V
24V Valve holding voltage ≥8.5V
Output voltage of switch power supply 5VDC (with 300mA working current)
30±1.5VDC(with 510mA working current)
12±1VDC(with 110mA working current)
Ion sensibility of flame detection ≥5.1MΩ
Temperature detection precision ±2℃
Waiting time of reaching setted temperature ≤35S
Water temperature overshoot range ±3℃
Timing tolerance ±1 minutes
Post-purge time 20±2s
Time to achieve safe shut down ＜1s
Trial for ignition period 7.5±1s
