Cutter Master For The Endmill High Precision Grinding
Posted at: Offers to Sell and Export | Posted on: Thursday 26 April 2012 3:24 am | Poster last visit: Thursday 23 October 2014 |
Product Description:

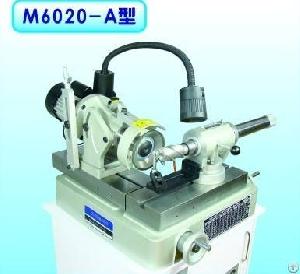

Cutter master(M6020)
technical parameter:
End mill capacity (dia. Of shank x dia. Of edge x length)
50
x 225 x 250mm, 2" x 9" x 10"
Swing over table
245mm, 9-3/4"
Longitudinal travel (X axis)
150mm, 6"
Cross travel of table (Y Axis)
75mm, 3"
Max. Wheel:
125 x 50 x 32mm, 5" x 2" x 1-1/4"
Tilt adjustment for wheelhead
+35° -10°
Air bearing swivel
360°
Air bearing stroke
250mm, 10"
Table infeed graduation
0.02mm, 0.001
Air bearing graduation
6.3MPa
Pipe joint diameter
z/4" 1
Collet fit for spindle
5c
Parallelism between two tables
0.01/100mm, 0.01/100
Parallelism of sleeve center line to worktable
0.01/100
Motor speed: 2, 800rpm
3, 450/2, 580rpm
Voltage
230V 110V/1 phase
Power
0.25kW 1/3HP
Frequency
50Hz
Raduis grinding attachment's Specification:
Install T-shaped slot width
12.7mm
Spring chuck
5c
The minimum feed unit
0.0005”
Maximum griding arc radius
3”
Equal dividing
30degree
Parallelish of work hole to base
0.02/60mm
Radial run out of work hole center line(60mm for hole
0.015mm
Company Contact:
Contact Name: Jacky
Company Name: Dongguan Thor Machinery Co., Ltd
Email:
Tel: 0086-0769-81177281
Fax: 0086-0769-81177281
Street Address: No 1 Industrial Avenue,
Hengli Town, Dongguan City,
Guangdong Province, China
Website: https://www.thorgrinder.com
Member name: Thorgrinder
Country:
China
Member Since: 19 July 2011
Total Leads: 66 Thorgrinder Import Export Business Leads
Business focus: Drill Grinder, End Mill Grinder, Screw Tap Grinder, Chamfering Machine, Cutter Grinder, Tool Grinder, Saw Blade Sharpener, Lathe Tool Grinder
