Product Description:
Introduction

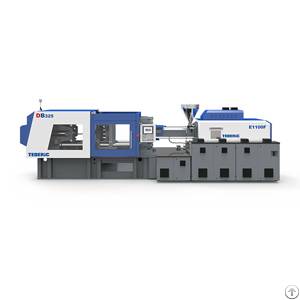

This is a hydraulic-electric hybrid injection molding machine, with the characteristics
of hydraulic mold closing and electric injection. Clamping force ranges from 265 tons to 585 tons for 4 models, the injection speed is up to 500mm/S. The clamping unit of this series has strong rigidity, big mold opening force, strong clamping capacity with stable, accurate, fast injection movement. Hybrid injection moulding machine is different compared to standard hydraulic injection molding machines in that they use a servo motor coupled to a hydraulic pump to circulate the oil used to provide the hydraulic pressure which actuates the components of the machine. The use of a servo pump allows for continuous adjustments to the actual power requirements, low emissions, less noise, and energy savings.
Design Highlights:
High-end Parts Selected
The ball screw and bearing choose NSK from Japan, the pressure sensor choose Baumer from Switzerland, the servo motor choose Phase from Italy.
Excellent Plasticizing Effect
Using PP special high plasticizing screw, l/d ratio of 27:1.
Strict Standards
Template parallelism is less than 0.075mm/m, pull rod deflection rate is less than 2%.
Feature:
High speed : injection speed up to 500mm/s
Precision: the repeated precision of injection and mode-locking action is 0.01mm
Energy saving :electric servo technology and hydraulic servo technology combined, saving more than 15% energy compared with hydraulic high-speed machine
Are you looking for Chinese injection molding machines? Tederic machine will be the best choice!
