Product Description:
Feature:
Wireless control, easy to install.
Can ignite various kinds of electric fireworks directly,
or ordinary fireworks through ignition head, which reduce accidents like skin burn and accidental explosions.
One ignitor can light several fireworks at the same time.
One transmitter can control many ignitors simultaneously.
The ignitor can be remotely controlled from any place within a reliable distance; the wireless signal pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz/433MHz/350MHz
Working distance of transmitter and receiver with external extend antenna: 2000M / 6000ft (theoretically)
Receiver:
Model No.: S2PS1-DC09-ANT2
Channel: 2 Channel
Control Modes: Momentary or Toggle
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): DC9V±1V
Power Output: DC9V
PCB size: 88mm x 56mm x 16mm
Case size: 90mm x 64mm x 32mm
Static Current: ≤6mA
The receive distance with external extend antenna is twice of using ordinary antenna.
Battery (Not included):
6F22- 9V battery
Dimention: 48.5mm x 26.5mm x 17mm
External Extend Antenna:
Frequency Range: 300~450MHz
Antenna Length: 15cm
Cable Length: 150cm
Weight: 35g
Anti-interference, waterproof, shielded wire set inside
Magnetic stand design for easy to install

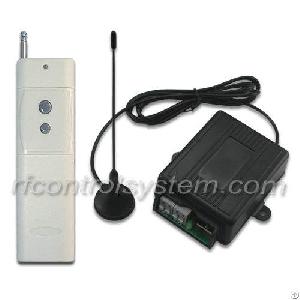

Transmitter:
Model No.: CB-2
Channel: 2 CH
Remote Control Distance: 1000m / 3000ft (theoretically)
Encode: Fixed code by soldering
Unit size: 135mm x 42mm x 25mm
Power Supply: 1 x 6F22-9V battery (included, can be used for 12 months)
