Product Description:

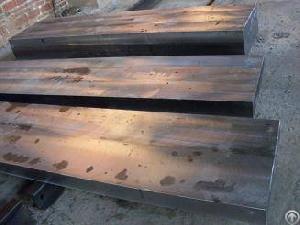

DIN 1.2080/AISI D3 Cold Work Tool Steel Plate
Applications:
1. Used for manufacture of coldwork dies,
punches, cold cutting scissors, drill bushes, Gauges, Wiredrawing dies, coining dies, draw bench boards, drawing dies, thread rolling dies, etc.
With high abrasive resistance and small shock load.
2. Used for processing of cutters made of materials which are not hard
3. Used for plastic moulds with high abrasive resistance and long service life
Description:
1. DIN 1.2080, AISI D3, JIS SKD1, Cr12 cold work tool steel
2. Hot rolled condition, annealing, black surface
3. Hardness: ≤ 255HBS;
4. Hot rolled technology: EAF+LF+VD
5. Ultrasonic test standard: SPE1921-GR3, CLASS D/D or E/E
Chemical component :
C 1.9~2.0
Si 0.1-0.4
Mn 0.15~0.45
S 0.025 max
P 0.025 max
Cr 11~12
Compared grades(based on usage):
Chinese GB Cr12
American AISI D3
German DIN 1.2080
Japanese JIS SKD1
Specifications:
Hot rolled condition Steel plate(mm)
Thickness Width Length
16~125*225~2400 *1800~5800 ( ChangGang, FuShun, TianGong Steel)
130~200 *225~2400* 1600~5800 ( XiangGang, BaoGang steel )
Competitive Advantage:
1. High chromium ledeburitic steel
2. Advance the hardening, strength and toughness
3. High abrasive resistance and small shock load
4. High compressive strength
5. Competitive price
6. Fast production leadtime
7. All the material are inspected with 3 times to meet the highly standards
We can provide below service:
A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc
