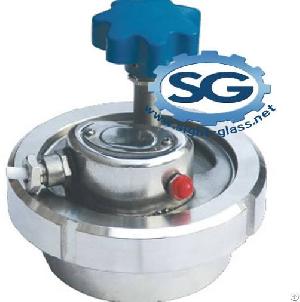

Product Description:
From DN 50 (with a free view of 50 mm) to DN 150 (with a free view of 150 mm).
Operating conditions:
Nominal
pressure rating 6 bar maximum and vacuum. Temperatures of up to 150°C with sodium silicate glass to DIN 8902 or up to 280°C with borosilicate glass to DIN 7080, thus allowing sterilisation.
Materials:
Welding nozzle in stainless steel 316L (1.4404)
Grooved collar nut in stainless steel 304 (1.4301) or 304 L (1.4307)
Gasket product side: Silicone (or PTFE, Viton, EPDM [On request with FDA approval])
Gasket cover side: PTFE
Certificates:
- To be supplied against extra charge to DIN EN 10204
