Product Description:
Flanged swing check valve with counterweight
Design std: din3356, din3202 f6;
Material:cf8m(316l),
1.4308, 1.4401;
Face to face: EN558-1/line 48 (DIN 3202 F6);
Mounted lever + counterweight outside shaft
Check valves with large sizes mounted with hydraulic damping cylinder
Test and inspection: EN12266-1.
Material:
Body/cover/disc: cf8m
Arm/counterweight: 316
Pin: ss420
Body seat: 316
Sealing/gaskets: ptfe
Bolts/nuts: ss

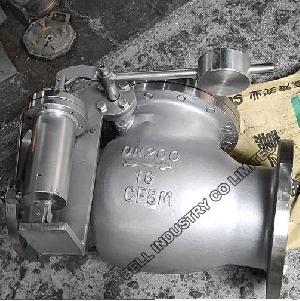

Name: swing type check valve with lever + counterweight.
Design: DIN 3356.
Body: 1.4308.
Nominal size: DN200.
Nominal class: PN16.
Connection ends: RF Flanged ends.
