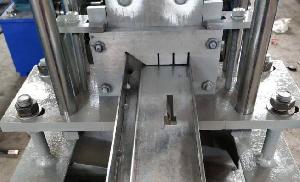

Door Frame Roll Forming Machine
Posted at: Offers to Sell and Export | Posted on: Friday 12 July 2019 9:22 am | Poster last visit: Tuesday 24 March 2020 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Metal forming machinery and accessories
» Metal rolling machines
» Sheet metal forming machine
» Door Frame Roll Forming Machine
Product Description:
Special designed steel door frame cold roll forming equipment
Door Frame Roll Forming Machine
we also
would like to design the Door Frame Forming Machine as per your required profile drawing
Steel Door Frame Roll Forming Machine SURFACE TREATMENT
1) Processing material: steel strip
2) Material thickness: 1.0-1.5mm
3) Effective width: 120mm
4) Feeding width: 238mm
5) Main motor power: 15kw
6) Pump power: 5.5kw
7) Diameter of shaft: Ф65mm
8) Productivity:0-12m/min
9) Roller stations: 16 forming steps
10) Roller material: No.45 forged steel, plated hard chrome on the surface of roller
11) Active shaft material: 45#steel with high frequency surface treatment and grinding process
12) Cut blade material:Cr12 steel with vacuum heat treatment, hardness reaches 58HRC-60HRC
13) Transmission type: Gears
14) Control system: Taiwan Delta PLC computer control system
15) Power supply: 380V, 3 Phase, 50Hz(or as per your request)
Technology
manual decoiler→guiding device→main machine of roll forming→cutting device→ output table, electric-motor, hydraulic station, PLC control system
Door Frame Roll Forming Machine SALES TERMS
1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation
2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment Or 100% LC at sight
3). Package: naked with simple plastic film and loaded in one 20-feet container
4). Delivery time: 50 working days after receipt of the deposit
5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.
6). After sales service
This Cold Forming Machine is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
Company Contact:
Contact Name: Fan Liuqian
Company Name: Botou Yangcheng Cold Forming Machine Co., Ltd.
Email:
Tel: 152 2663 0086
Fax: 0086-317-8085556
Street Address: Opposite Of
Fuxingyuan, Xihuan Road, Botou City,
Hebei Province, China
Botou City, Hebei Province 062150
China
Website: https://www.metalrollingmachinery.com
Member name: BotouYangchengCold
Country:
China
Member Since: 11 July 2019
Total Leads: 3 BotouYangchengCold Import Export Business Leads
Business focus: Roll Forming Machine, Metal Building Material Suppliers
Chat:
Verify: Safe Import Export Tips
