Product Description:

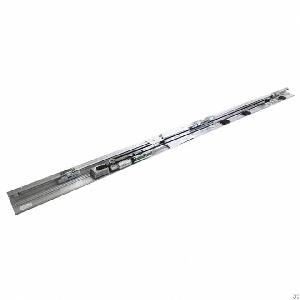

Dorma ES200 Automatic Glass Door Operator Automatic Sliding Door Operator automatic door spare parts
manufacturer
The new, innovative ES 200 sliding door operator system offers the perfect solution for all applications and service requirements. The ES 200, equipped with the Dormakaba PowerDrive technology, fulfills every demand imposed on operators in terms of adaptability to different door widths, door weight capacity and functionality.
Automatic Door Accessories Features, * Modular, flexible system
* With DORMA PowerDrive: Dynamically controlled acceleration and deceleration curves for particularly powerful operation and with emergency power backup in the form of a rechargeable battery pack
* Industrially prefabricated and tested MiniDriveUnit Modular control system upgradeable with additional functional modules
* Integrated DCW (DORMA Connect and Work) bus system for easy integration of DORMA DCW sensors and actuators
* Commissioning via integrated display or optionally with PDA and ASP software
* Can be combined with all customary door profiles
* Fully comprehensive range of accessories Reliable investment due to compliance with all relevant European and German standards
Door Parameters
LW 700 3000 mm
1x200KG
2-panels sliding door
Clear passage width
Door panel weight, max.
LW 800 3000 mm
2x160KG
Technical Datas, Height 100 and 150 mm
Overall depth 180 mm
Opening and closing force, max. 150 N ●
Opening speed (incremental setting) 10 70 cm/s
Closing speed (incremental setting) 10 50 cm/s
Hold-open time 0 180 sec.
Mains voltage, frequency 230 V, 50/60 Hz
Power consumption 250 W
Class of protection IP 20
Compliant with EU low-voltage directives ●
Manufacture according to ISO 9001:2000 ●
Basic Module (BM)
Modular design ●
Microprocessor-controlled function programs
Off
Automatic
Permanent open
Partial opening
Exit only
Night-bank control
●
●
●
●
●
●
Connections for
electro-mechanical lock
light barriers
●
●
Adjustment of all basic parameters via integrated display and pushbuttons ●
PDA parameter setting ●
24 V output for external loads ●
Read-out error memory with error codes ●
DCW bus interface ●
Rechargeable battery pack for emergency operation ●
Automatic sliding door and accessories such as operator is one of our main product. KAST is Panasonic automatic door official distributor. Meanwhile, we sell Dormakaba, Geze, Tormax, Nabco, GU for you to choose.
