Product Description:

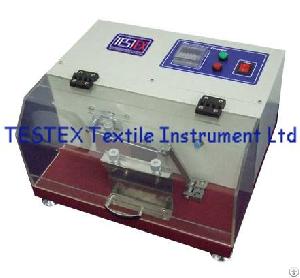

Downproof Tester
Feather tester
Downproof Tester, To determine the downproof capability of fabric used
for downgarmet, quilt etc. Downproof Tester complies with BS 12132, EN 12132-1, STS 47, ect.
Application
Downproof Tester, To determine the downproof capability of fabric used for downgarmet, quilt etc, which are full with down, feather and fibers.
Take a agreed size specimen from the fabric to be tested to sew a pocket at specified size, fill with a certain weight of down, feathers or a mixture of both, then sew the fabric up to be a testing bag. Clamp the both sides of the bag in the holder. After test to determine the downproof ability of the fabric by calculating the number of down and feathers through the fabric.
Specifications
Fixture space: 44mm
Eccentricity: 25+/-0.5mm
Speed: 35r/min
Sample size: 140x420mm
Bag size: 120x210mm
Filler : down, feathers or both mixtures
Test times : 2700, adjustable
Counter:, 0 to 999999 time : LED display, Standards EN 12132-1, STS 47, BS 12132
Power 220 /110 V 50/60 Hz 2 A
Weight 25 Kg
Dimensions 400x270x190 mm(LxWxH)
