Dr6018 V4, Support Openwrt Ipq6010 802.11ax 2x2 2.4g5g 2.5gbps Ethernet Port

Product Category: Main » Information Technology Broadcasting and Telecommunications » Software » Networking software » Switch or router software » Dr6018 V4, Support Openwrt Ipq6010 802.11ax 2x2 2.4g5g 2.5gbps Ethernet Port

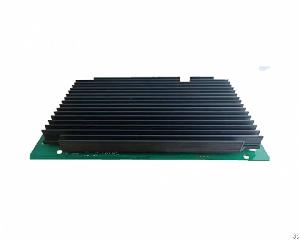

Product Photo:

dr6018 v4 openwrt ipq6010 802 11ax 2x2 2 4g5g 5gbps ethernet port

Similar Products Catalog:

Dr6018 Openwrt Ipq6010 Photos Catalog

Product Description:

AtherosclerosisIPQ6010

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

32MB NOR

Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

Support: QUECTEL RM500Q-GL

Support: QCN9074 WiFi 6E Card

Absolute Maximum Rating

Parameter Rating Unit

Supply Voltage 24V~48 V

Operating Temperature Range -40 to +70 ºC

Storage Temperature Range -45 to +105 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Hardware Specifications

Symbol Parameter

CPU Qualcomm-Atheros IPQ6010

CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor

System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design

Ethernet Port 1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports, 1x 2.5Gbps Ethernet Port

NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0

SD Card Slot 1x SD Card Slot

USB /header 1x USB 2.0 Port

POE 24V~48V passive POE/Active POE(Suport 802.3bt)

DC Jack 24V power supply

LED header FFC/FPC Connector

Serial Port 1x Serial Port 4 Pin Connector

max 23dBm per chain

4 x MMCX Connectors

Bluetooth CSR8811 BLE 4.2

Nor Flash 32MB

Nand Flash 256MB

Ddr 256mb~512mb

Dimension 185mm x 116mm
