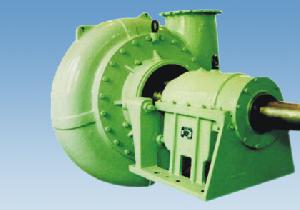

Dredge Pump Zn Series
Posted at: Offers to Sell and Export | Posted on: Tuesday 10 January 2012 3:51 am | Poster last visit: Friday 17 February 2017 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Industrial pumps and compressors
» Pumps
» Dredge pumps
» Dredge Pump Zn Series
Product Description:
We supply various kinds of marine pump, dredging pump, mud pump, slush pump, centrifugal pump, impeller
pump, spiral pump, submersible pump; immersible pump; deep-well pump; underwater pump, dredge pump for dredgers together with other dredger parts.
Detail:
Characters And Functions：
ZN series dredging pump is a new type of mud pump that developed directing at the domestic rivers and lakes, dredging, on filling the work of the imminent present situation. This series of pumps is single grade single suck horizontal centrifugal pump. The mud pump system is mainly made up of the pump head, the reduction gear box, high elastic coupling, a marine transmission device of monitoring system, with the characteristics of well whole structure of marine, excellent dredging performance and long life of high efficiency, the shaft sealing is reliable, remarkable comprehensive the economic benefit in use, which can completely meet the requirement of mud pump mire ship.
Model significance help：
e.g.:500ZN (D, Q)
500: Pump export diameter (mm)
Z: Trash pump
N: Slurry（dredging）
D: Low Head
Q: Underwater
Model Flow rate
Q
(m3/h) Pumping head
H(m) RPM
n(r/min) Max Efficiency
η(%) npsh
r(m) outlet diameter inlet diameter
(mm) Allows maximum size (mm)
200znd 600-800 20-40 700-900 60-65 4.5 200/250 178
200zn 750-1000 40-65 700-850 70-72 4 200/250 180
250znd 950-1100 20-40 500-700 65-70 4 250/300 220
250zn 1100-1300 40-65 500-650 70-74 4 250/350 144
300znd 1500-1800 20-40 400-600 65-68 4 300/350 244
300zn 1800-2200 40-65 400-550 74-78 4 300/450 244
350zn 2600-3000 40-65 400-550 74-78 4.5 350/450 245
400zn 2800-3200 20-40 400-550 74-78 4.5 400/450 250
450zn 3200-3850 40-67 350-500 76-80 4.5 450/600 354
500znd 3600-4200 20-40 220-320 72-75 4.8 500/600 330
500zn 4500-5500 40-65 350-450 78-80 4.8 500/650 250
600zn 5000-9000 55-80 280-420 84-85 6 600/660 220
700zn 8000-12000 60-85 280-380 83-85 6 700/760 280
900zn 12000-19000 50-75 280-330 85-87 6 900/960 320
1000zn 16000-25000 23-76 181-290 85-87 6 1000/1200 350
Company Contact:
Contact Name: Neil
Company Name: Pan-Asia Ship Engineering Co., Ltd
Email:
MSN:
Skype: Pan-AsiaShip-Cam
Tel: +86-27-8571-9780 / +86-27-8555-3933
Mobile: +86-186-0270-4854
Fax: +400 88 75 666-910502
Street Address: No.2904, A, Liang Hu Zong Du,
No.99 Bei Hu Xiao Rd., Wuhan, China
Website: http://www.cnshippings.com
Member name: helenguo2009
Country:
China
Member Since: 14 April 2009
Total Leads: 125 helenguo2009 Import Export Business Leads
Business focus: Dredger, Barge, Tanker
Chat:
Verify: Safe Import Export Tips
