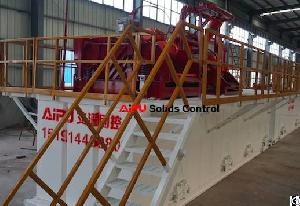

Drilling Fluids Recycling System For Horizontal Directional Drilling
Posted at: Offers to Sell and Export | Posted on: Wednesday 26 July 2017 2:46 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Oil and gas drilling and exploration equipment
» Directional drilling equipment
» Directional drilling surface control systems
» Drilling Fluids Recycling System For Horizontal Directional Drilling
Product Description:
Drilling fluids recycling system for horizontal directional drilling. Horizontal directional drilling
is shortened as HDD. The solids control for HDD mud process is usually called HDD mud recycling system. Usually we'll propose submersible slurry pump prior to shaker.
Please find below procedure as more reference.
HDD Mud Recycling System Working Procedure
1. There is a drill pit at each side of drilling hole, a set of vertical slurry pump will set on top of mud pit for feeding shale shaker. The shale shaker screen will separate drilling cuttings and discharge out, fluids part will drop into sand trap through screen hole.
2. 1 or 2 or 3 sets of desander cyclone sit after shale shaker, one set of centrifugal pump will feed desander cyclong for second phase separation, solids out of desander will be discharge to shaker screen or cutting box directly and fluids over flow from desander will flow into desander compartment.
3. A quantity of desilter cyclones will sit after desander for fine solids separation, solids out of desilter will discharge to shaker screen or cuttings box, fluids over from desilter will drop into desilter compartment.
4. A mixing pump sit on tank skid for drilling mud transfer and feed mud into mud hopper for new mud remix by new chemicals. The mixing hopper can sit on top of tank or tank skid as per client’s demand
HDD Mud Recycling System for option
Model APMR-200 APMR-350 APMR-500E APMR-500H APMR-1000
Mud Flow Capacity 200GPM 350GPM 500GPM 500GPM 1000GPM
Tank Volume 5.0㎡ 11.5㎡ 11.5㎡ 19.0㎡ 26.4㎡
Total Power 23.5Kw 54Kw 84Kw 125Kw 184Kw
Tank Size 4000×2200×1500mm 6000×2200×1800mm 6000×2200×1800mm 9500×2200×1800mm 11800×2200×1800mm
Screen Area 2.7㎡ 5.45㎡ 5.45㎡ 5.45㎡ 8.18㎡
Weight 5.6t 9.5t 10.0t 16.5t 18.0t
Dimention 4000×2500×2650mm 6000×2500×3350mm 6000×2500×3350mm 9500×2500×3450mm 11800×2500×3450mm
Company Contact:
Contact Name: Jessie
Company Name: Aipu Solids Control
Email:
Tel: +86-18691483929
Fax: +86-2963611978
Street Address: 4th Jingyuan Road,
Jinghe Industry Zone
Xi'an, Shaanxi 710200
China
Website: https://www.aipusolidcontrol.com
Member name: aipusolidcontrol
Country:
China
Member Since: 11 July 2017
Total Leads: 172 aipusolidcontrol Import Export Business Leads
Business focus: Solids Control Equipment, Shale Shaker, Mud Cleaner, Centrifuge
