Product Description:
Overview

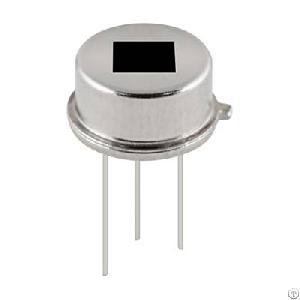

D203B( dual tech pir detector) with big angle windows. It widely used in light sensor.Dual
compensated sensing elements are applied to suppress the interference resulting from temperature variation.
Senba outdoor dual technology motion sensors with high sensitivity, low noise and reliable performance. Senba is the specialist PIR manufacturer for more than 15 years. We are the most advanced factory with complete categories. With strong R&D center, there are digital type and analog type, dual elements and four elements for you choose. The market cover domestic market, Korean, Amertica, Turkey and Europe.
Features of pir dual sensor
Large detection angle
Custom design is available
Higher in cost-performance
Item D203B
Encapsulation Type TO-5
IR Receiving Electrode 2×1mm, 2 elements
Window Size 5×3.8mm
Spectral Response 5-14mm
Transmittance ≥75%
Output Signal[Vp-p] ≥3500mV
Sensitivity ≥3300V / W
Detectivity (D*) ≥ 1.4 × 10 8 cmHz 1/2 / W
Noise[Vp-p] <70mV
Output Balance <10%
Offset Voltage 0.3 ~ 1.2V
Supply Voltage 3—15V
Operating Temp -30—70ºC
Storage Temp -40—80ºC
Field of View
Equivalent Circuit
Applications
Lighting Switch
Vending machines
Automatic control
Faq
1. How far can a dual pir motion detector detect?
D203B can detect up to distances of 8- 10M.
2. Do PIR sensors work in the dark?
Yes, motion sensors work in the dark. The way that a motion sensor detects movement has nothing to do with how light or dark it is in the immediate area. ... Since infrared energy is present and can be detected regardless of the amount of light in the environment, a PIR motion sensor will work just fine in the dark.
